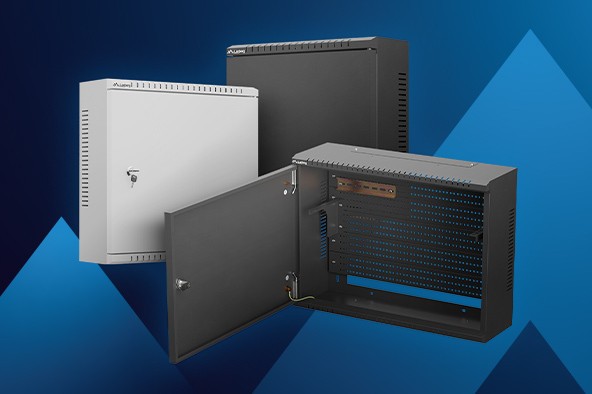

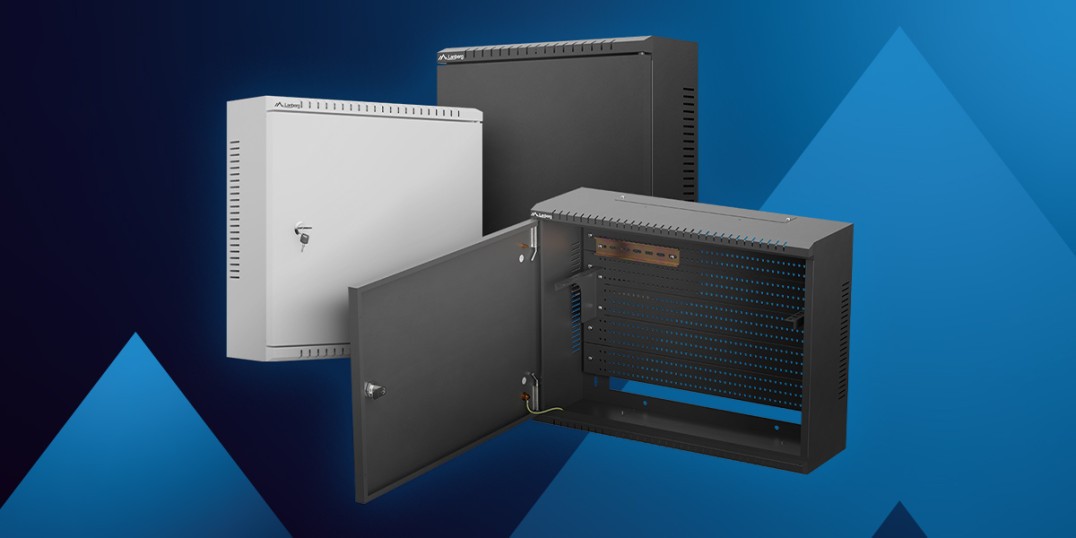

The new Lanberg TPR cabinets make it possible to keep a router, switch, DIN rail devices and other infrastructure components together in one well-organized space. No tangled cables, random equipment placement or need to adapt the entire project to the limitations of the enclosure.
One cabinet, many possibilities
TPR cabinets can serve as compact distribution points for LAN, CCTV, RTV, alarm, smart home or building automation systems. They are suitable for homes, offices, commercial premises, back rooms and technical rooms.
Their key advantage is the ability to adapt the interior to the requirements of a specific project. The MESH mounting plate, makes it easier to install power supplies, distribution modules, control modules and other devices that do not use standard RACK mounting.
The included RACK brackets and IT device holders make it possible to quickly install a router, switch and other network equipment. This allows different device mounting methods to be conveniently combined within a single enclosure.
Easy installation and convenient access
Cable openings located at the top and bottom of the enclosure allow network, power and signal cables to be routed conveniently. They help keep the inside of the cabinet organized, provide easier access to devices and simplify future expansion or servicing of the installation.
Additional flexibility during installation is provided by the door, which can be mounted to open either to the right or to the left. This makes it possible to adapt the opening direction to the layout of the room and install the cabinet conveniently even in a corner, narrow corridor, technical cabinet or small back room. The wide door opening angle also makes the interior easier to access during equipment installation and maintenance.
Ready to use
Lanberg TPR cabinets are supplied fully assembled and include a set of essential accessories. The package includes, among other items:
- MESH mounting plate,
- RACK brackets,
- IT device holders,
- TS-35 DIN rail,
- mounting plugs,
- M6 screws,
- grounding wire,
- front lock.
Once the enclosure has been mounted, device installation can begin immediately – without the need to purchase basic brackets and accessories separately. The DIN rail expands the possibilities for mounting additional equipment, while full grounding of the enclosure and its metal components improves the safety of the entire installation.
The TPR cabinet design has been developed to make transport and installation easier while providing the durability required for everyday use.
Six variants for different applications
All cabinets feature lockable metal doors, an IP20 protection rating and are intended for indoor installations. Models measuring 340 × 340 × 140 mm offer a load capacity of up to 50 kg, while the larger variants support up to 60 kg:
- TPR 10” 340 × 340 × 140 mm, black – WAT1-3414-00B
- TPR 10” 340 × 340 × 140 mm, grey – WAT1-3414-00S
- TPR 10” 400 × 400 × 140 mm, black – WAT1-4014-00B
- TPR 10” 400 × 400 × 140 mm, grey – WAT1-4014-00S
- TPR 19” 560 × 420 × 180 mm, black – WAT1-5618-00B
- TPR 19” 560 × 420 × 180 mm, grey – WAT1-5618-00S
The new Lanberg TPR cabinets do not impose a single equipment layout. They allow the interior, cable routing and door opening direction to be adapted to the specific location and application. They provide a well-thought-out foundation for an installation that is organized, functional and easy to manage in the long term.
