New

MOUNTING RAIL DIN TS-35 19" 2U GREY

Manufacturer code: AK-1802-S
EAN: 5901969448788
Warranty: 24m
Type: DIN rail TS-35
Size: 19"
Quantity included: 1
Material: Cold-rolled steel
Product description
Logo of Lanberg with the slogan "Take your Peak" on a blue background
Metal mounting rail designed for equipment installation in a rack system.

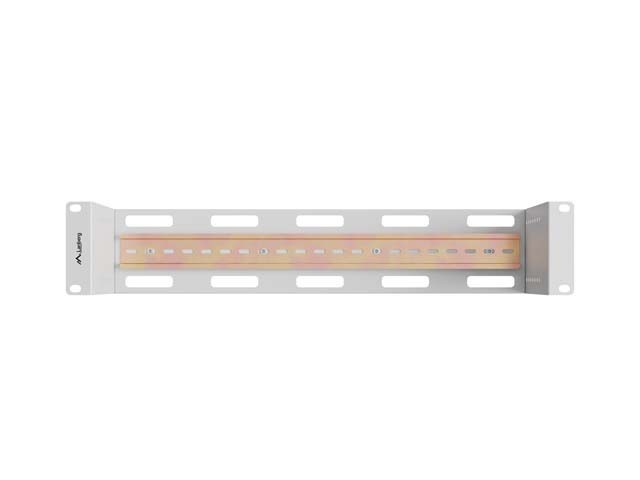

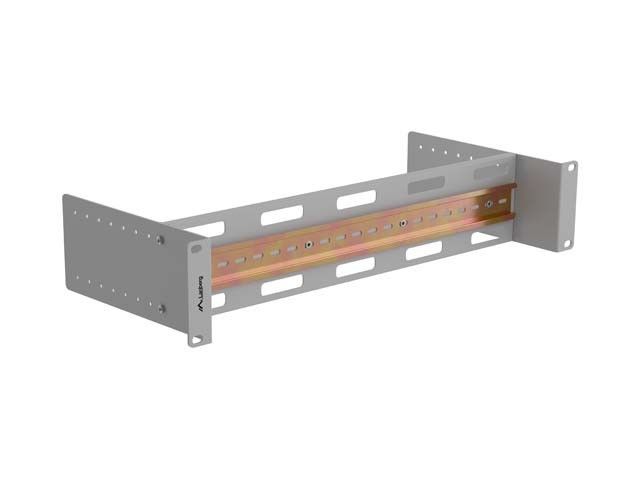

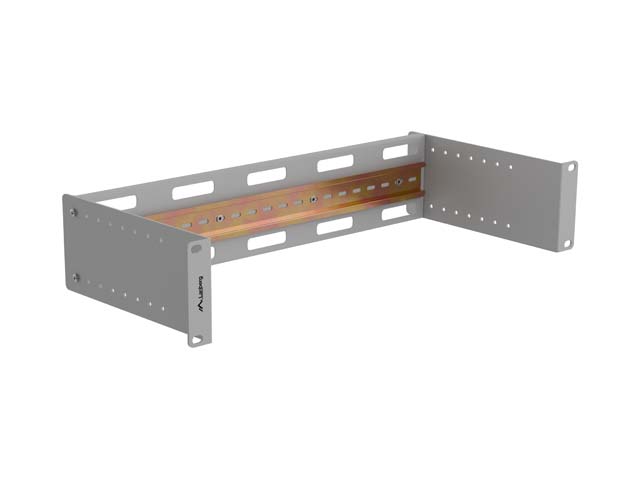

TS-35 19" 2U DIN Mounting Rail, Gray

Ensure organization, safety, and easy installation of components in a rack cabinet. The 19” TS-35 DIN mounting rail is a practical solution for telecommunications, networking, and industrial installations where stable mounting of equipment and easy access to system components are essential.

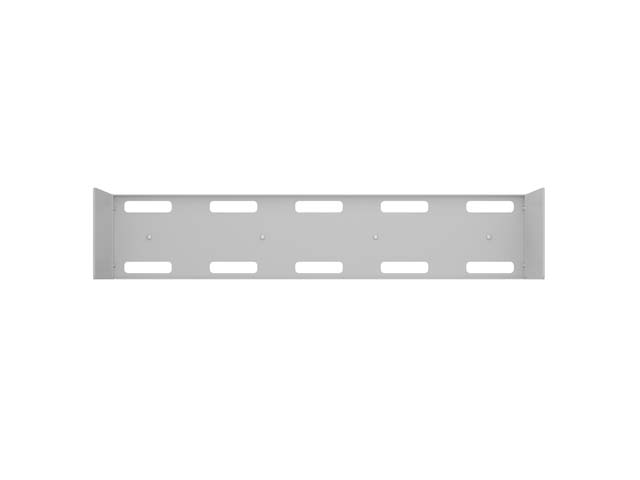

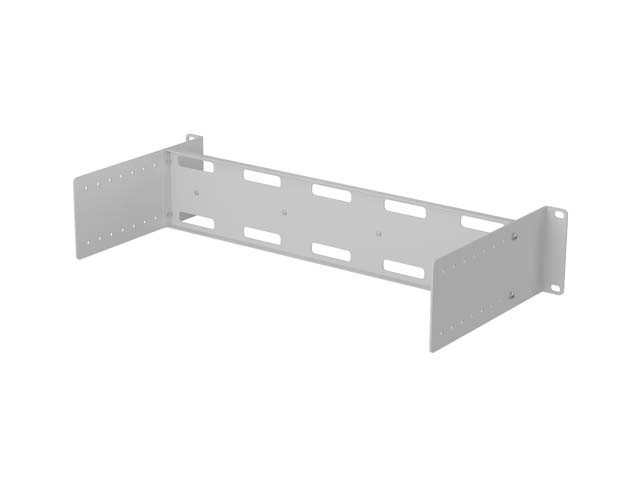

Mounting bracket with multiple holes for adjustable installation and a light-colored strip.

Sturdy steel construction and adjustable mounting

The product is made of cold-rolled steel, providing a sturdy foundation for everyday use in demanding installation environments. The adjustable mounting range of 65 to 191 mm allows the rail to be adapted to various configurations, and the maximum static load of 25 kg ensures safe use.

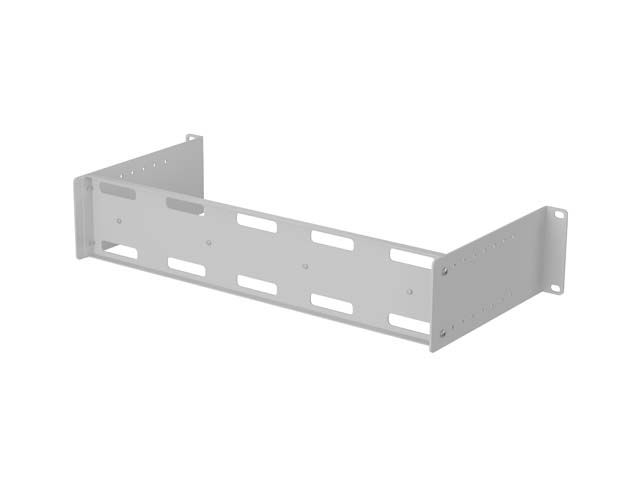

Metal rack installation bracket with multiple mounting holes in a server cabinet.

Ready to install and easy to adjust

The rail is equipped with mounting brackets that allow for installation in two positions, making it easy to adapt to a specific setup. The set includes M6 screws, so the product is ready for installation right out of the box. It’s a good choice wherever a rack cabinet needs to be not only functional but also organized and easy to expand later on. Thanks to its 19” standard design, the rail works well in both new installations and when upgrading existing infrastructure.

Specification

Type DIN rail TS-35
Size 19"
Quantity included 1
Material Cold-rolled steel
Colour Gray
RAL color RAL7035
ICT height 2 U
Maximum static load 25 kg
Range of adjustment 65 - 191 mm
Mounting rails thickness 1.5 mm
Length 210 mm
Width 483 mm
Height 88.9 mm
Weight 1.53 kg
Included Accessories M6 screws
Wireless LANBERG NC-1200-WI network card featuring USB 3.0, AC1200 dual-band support, and two internal antennas

Type
DIN rail TS-35
Size
19"
Quantity included
1
Material
Cold-rolled steel
Colour
Gray
RAL color
RAL7035
ICT height
2 U
Maximum static load
25 kg
Range of adjustment
65 - 191 mm
Mounting rails thickness
1.5 mm
Length
210 mm
Width
483 mm
Height
88.9 mm
Weight
1.53 kg
Included Accessories
M6 screws
