MOUNTING RAIL DIN TS-35 19" 3U BLACK

Manufacturer code: AK-1803-B
EAN: 5901969448795
Warranty: 24m
Type: DIN rail TS-35
Size: 19"
Quantity included: 1
Material: Cold-rolled steel
Product description
Logo of Lanberg with the slogan "Take your Peak" on a blue background
Black mounting rail designed for equipment installation in a 19-inch cabinet.

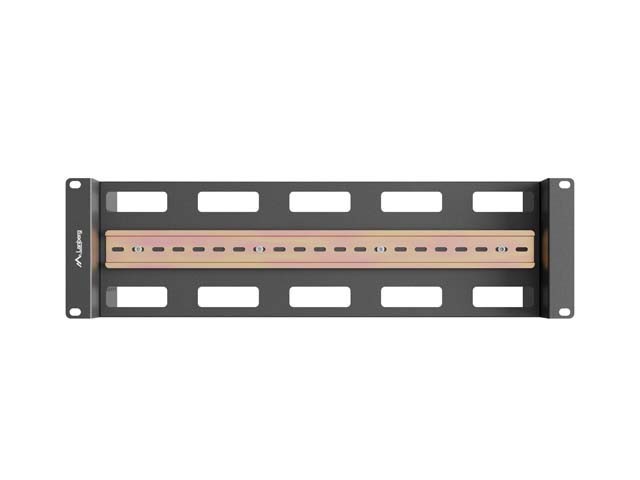

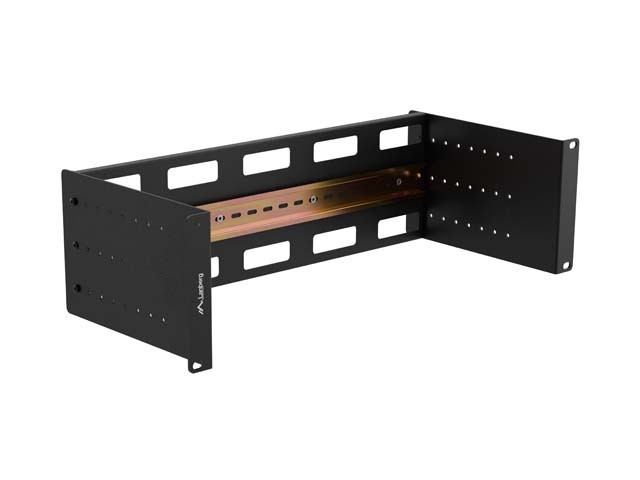

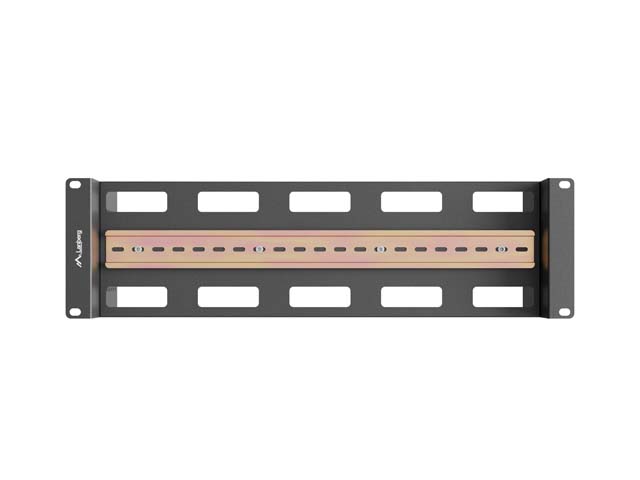

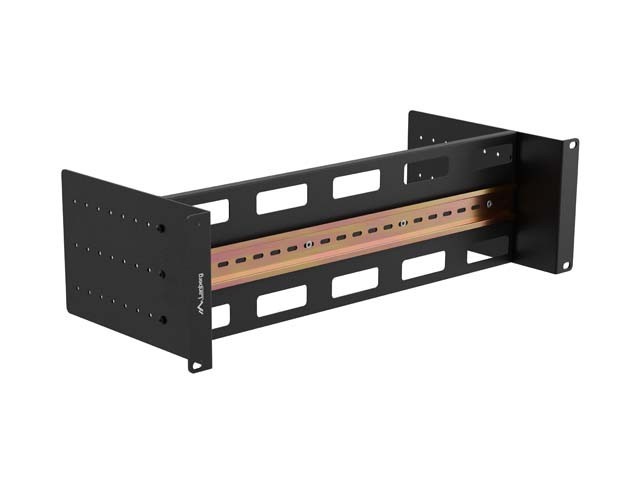

TS-35 19" 3U DIN Mounting Rail, Black

Ensure organization, safety, and easy installation of components in a rack cabinet. The 19” TS-35 DIN mounting rail is a practical solution for telecommunications, networking, and industrial installations where stable mounting of equipment and easy access to system components are essential.

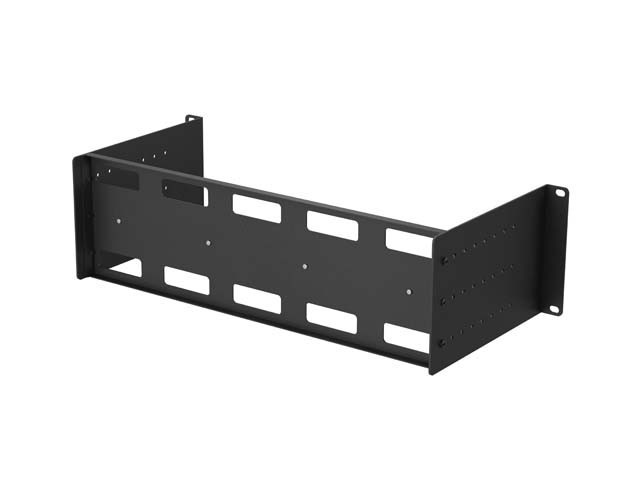

Mounting bracket with a metallic strip and multiple holes for secure installation options.

Sturdy steel construction and adjustable mounting

The product is made of cold-rolled steel, providing a sturdy foundation for everyday use in demanding installation environments. The adjustable mounting range of 65 to 191 mm allows the rail to be adapted to various configurations, and the maximum static load of 25 kg ensures safe use.

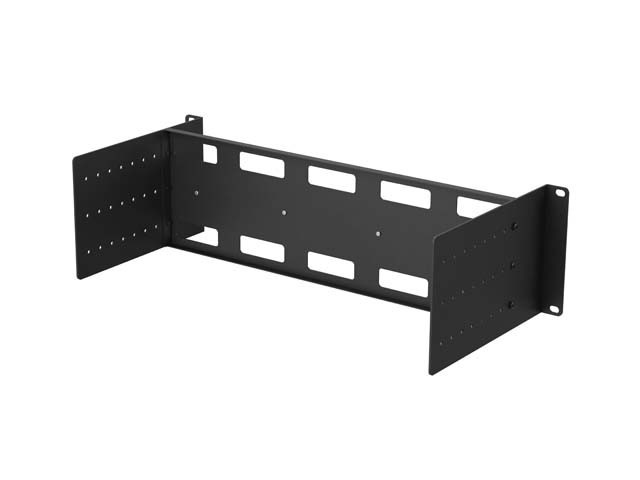

Metal bracket mounted within a server rack, with multiple holes for securing components.

Ready to install and easy to adjust

The rail is equipped with mounting brackets that allow for installation in two positions, making it easy to adapt to a specific setup. The set includes M6 screws, so the product is ready for installation right out of the box. It’s a good choice wherever a rack cabinet needs to be not only functional but also organized and easy to expand later on. Thanks to its 19” standard design, the rail works well in both new installations and when upgrading existing infrastructure.

Specification

Type DIN rail TS-35
Size 19"
Quantity included 1
Material Cold-rolled steel
Colour Black
RAL color RAL9004
ICT height 3 U
Maximum static load 25 kg
Range of adjustment 65 - 191 mm
Mounting rails thickness 1.5 mm
Length 210 mm
Width 483 mm
Height 133.35 mm
Weight 1.92 kg
Included Accessories M6 screws
Wireless LANBERG NC-1200-WI network card featuring USB 3.0, AC1200 dual-band support, and two internal antennas

Type
DIN rail TS-35
Size
19"
Quantity included
1
Material
Cold-rolled steel
Colour
Black
RAL color
RAL9004
ICT height
3 U
Maximum static load
25 kg
Range of adjustment
65 - 191 mm
Mounting rails thickness
1.5 mm
Length
210 mm
Width
483 mm
Height
133.35 mm
Weight
1.92 kg
Included Accessories
M6 screws
