RACKMOUNT 19" 2U FIBER PATCH PANEL 48XSC SIMPLEX/48XLC DUPLEX GREY + ACCESSORIES

Name: RACKMOUNT 19" 2U FIBER PATCH PANEL LANBERG 48XSC SIMPLEX/48XLC DUPLEX GREY + ACCESSORIES
Brand: Lanberg
SKU: FOP1-48SS-LDS

Manufacturer code: FOP1-48SS-LDS

EAN: 5901969448610

Warranty: 24m

Face plate: LC (duplex), SC (simplex)

Pull-out: Yes

Adjustable RACK mounts: Yes

Weld cassette material: ABS

Where to buy?

Do you want to become a partner?

Product description

Fiber patch panel with multiple input ports for connecting fiber optic cables.

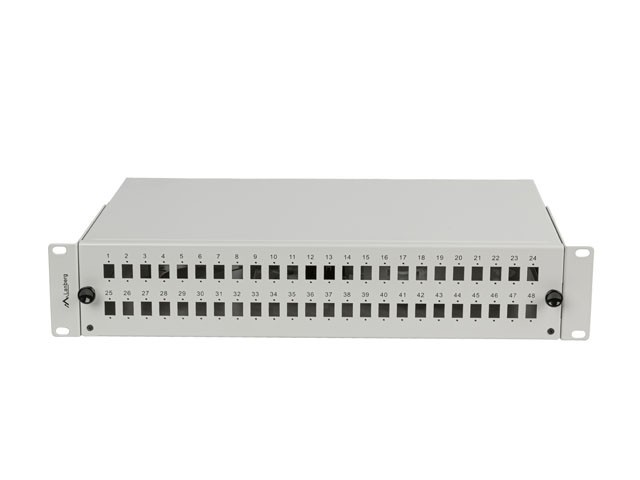

19" RACK Fiber Optic Patch Panel - 48 Ports, 2U Gray

In a large-scale fiber-optic installation, it’s not just the number of connections that matters, but also the ability to organize them clearly and service them conveniently. Lanberg fiber-optic patch panels offer 48 ports in a 19" rack-mount standard and support SC and LC adapters. Port numbering facilitates quick identification of connections and helps maintain order even with a large number of fibers.

Easy access during installation and maintenance

The pull-out drawer provides convenient access to the interior of the patch panel during installation, expansion, and subsequent maintenance work. Instead of working in the confined space of a rack cabinet, you can pull out the drawer and more easily access the fibers, splices, and cable management components. All models also feature adjustable rack mounts, which allow you to adapt the patch panel’s mounting position to a specific installation.

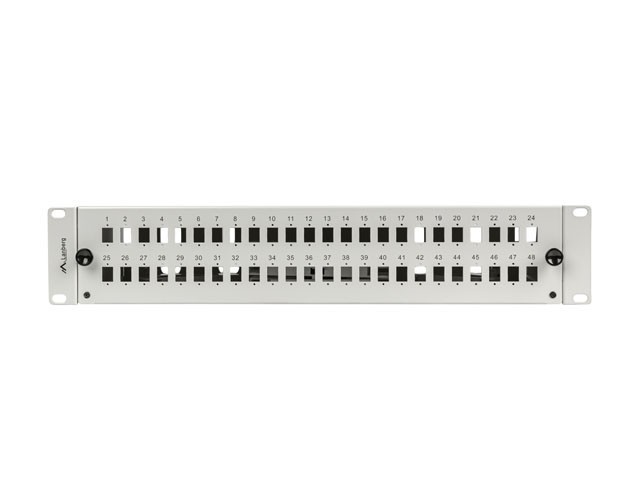

Panel with multiple ports for fiber connections on a blue background.

Everything has its place

Inside the patch panel, there are features designed to help keep the installation organized: 4 splice trays, cable clamps, and cable mounting points. This makes it easier to organize the fibers and set up the installation so that it remains easy to understand even during future expansions or maintenance work.

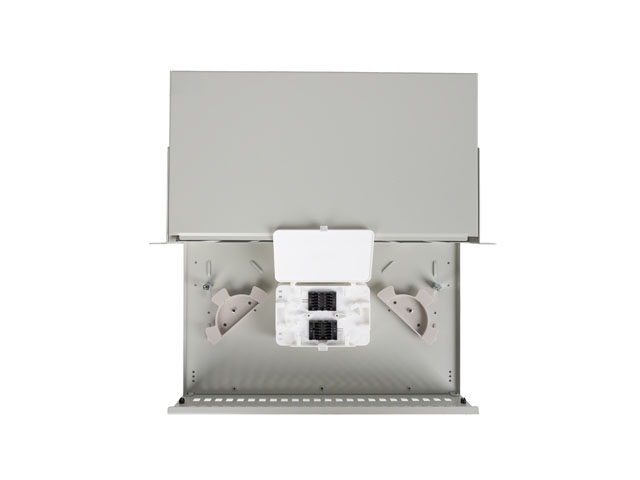

Metal rack enclosure with a removable front panel and internal mounting components.

Wiring Under Control

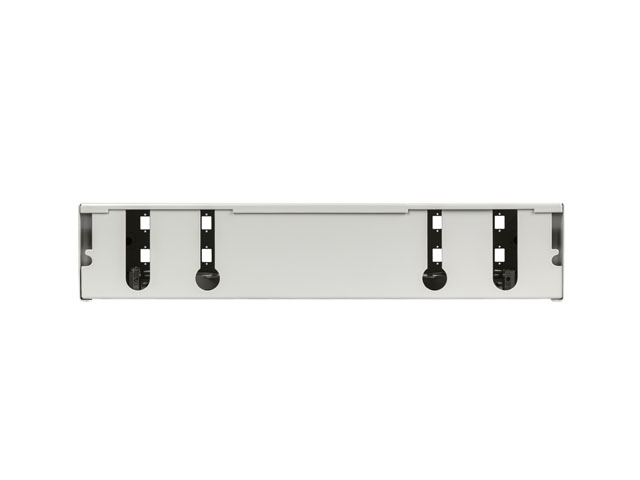

The organization doesn't stop at the front panel. There are 4 cable openings in the rear wall of the patch panel enclosure, and the set includes 4 PG 13.5 cable glands. This makes it easier to route cables into the enclosure and plan their further path inside the patch panel enclosure. Cable clamps and mounting points further help organize the wiring and prevent cables from shifting accidentally during installation work.

A mounted device with two side brackets and a central white component on a light background.

Design intended for use in a rack cabinet

The enclosure is made of cold-rolled steel. The mounting brackets are 1.5 mm thick, and the remaining structural components are 1.2 mm thick. The entire unit is designed for installation in standard 19" rack cabinets, in both 2U and 3U configurations.

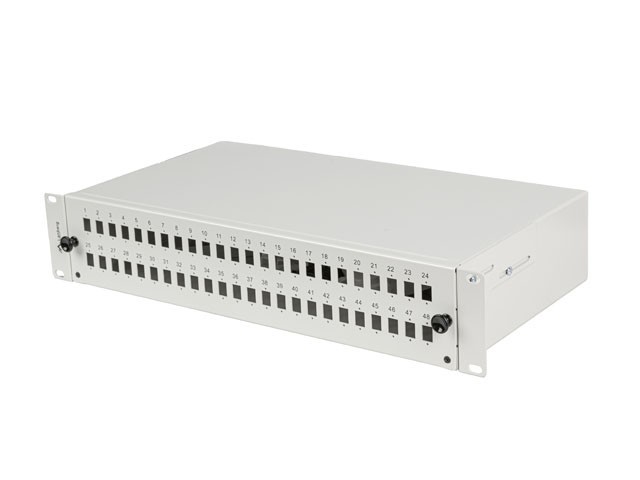

Panel with multiple connection ports arranged in two rows on a rack mount.

Select the option that best suits your installation

The series is available in 2U and 3U versions, as well as in black and gray. The 2U models measure 240 × 482 × 88 mm and are designed for SC simplex and LC duplex adapters. The 3U models measure 320 × 482 × 133 mm and support SC duplex and LC quad connectors. This allows you to choose a patch panel that fits both the available space in your cabinet and your fiber optic connection setup.

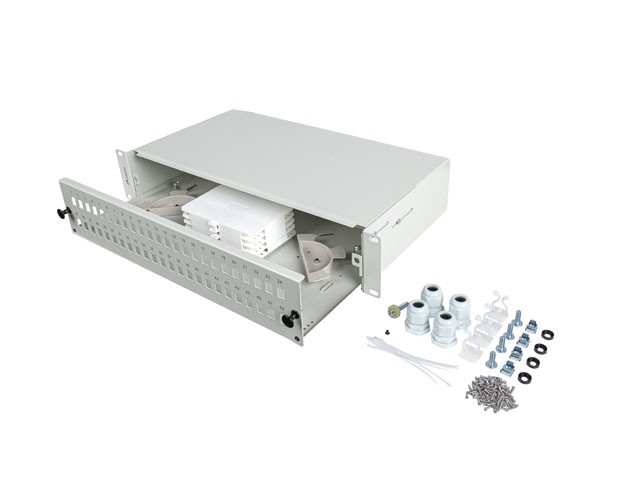

Hardware components including screws, clips, and connectors in a clear layout.

Specification

Face plate	SC (simplex), LC (duplex)
Pull-out	Yes
Adjustable RACK mounts	Yes
Weld cassette material	ABS
Port numbering	Yes
Number of holes in the back wall	4
Number of splice trays	4
The thickness of the mounting brackets	1.5 mm
Number of ports	48
Size	19"
ICT height	2 U
Other elements sheet thickness	1.2 mm
Weight	3.15 kg
Width	482 mm
Height	88 mm
Length	240 mm
Material	Cold-rolled steel
Included Accessories	Glands x4, Cable ties, M2 screws, M6 screws, Weld tray, Splice cassette holder, Cable clamps x4, Rack Ears
Colour	Gray
