RACKMOUNT SERVER CHASSIS ATX 450/12 19"/3U

Manufacturer code: SC01-4503-10B
EAN: 5901969448375
Warranty: 24m
ICT height: 3 U
Size: 19"
Motherboard form factor: ATX, ITX, Micro-ATX
Number of installed fans: 2
Show more
Where to buy?
Do you want to become a partner?
Product description Features Download files Related
Product description
Black 1.5-meter power strip from Lanberg with five 230V sockets for versatile electrical connections

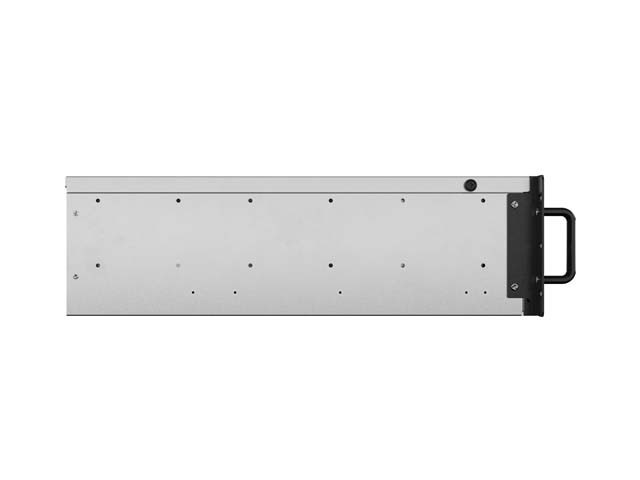

Server chassis designed for rack mounting, made of galvanized steel with a sleek finish.

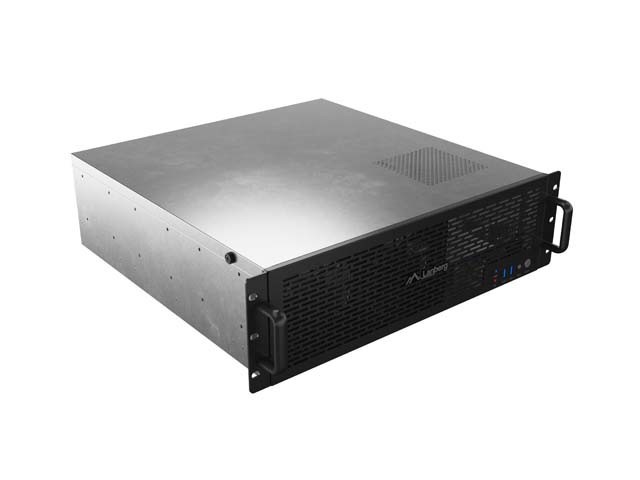

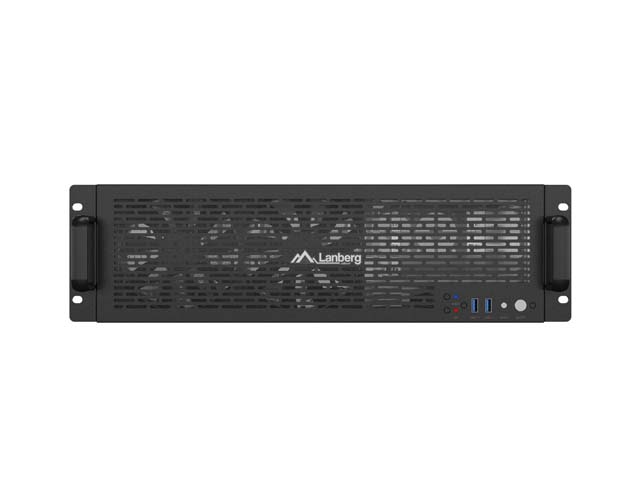

Lanberg SC01-4503-10B 19" 3U Server Rack Enclosure

The Lanberg SC01-4503-10B is a functional 19” rack-mount server chassis with a height of 3U and an installation depth of 450 mm. It was designed for building high-performance servers, data storage systems, and devices intended for use in IT racks.

The well-thought-out interior layout allows for the installation of popular motherboard formats, multiple HDD and SSD drives, and full-size expansion cards. Factory-installed PWM fans, dust filters, and the ability to expand the cooling system help maintain optimal operating conditions for components even during prolonged heavy loads.

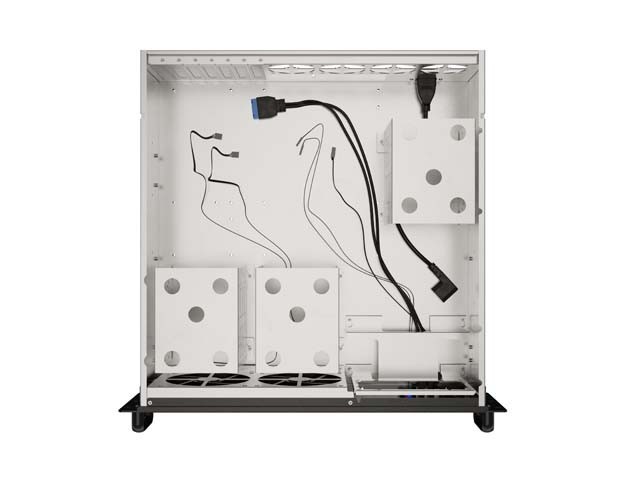

Enclosure with multiple compartments and various connecting cables inside.

Supports ATX, Micro-ATX, and ITX motherboards

The SC01-4503-10B chassis is compatible with ATX, Micro-ATX, and ITX motherboards. This allows for flexible component selection and the creation of configurations suited to both simple server applications and more complex enterprise systems.

The case features seven expansion slots. The maximum length of the cards that can be installed is 230 mm, allowing you to install, among other things, disk controllers, network cards, graphics cards, or other devices that use PCI Express connectors.

Rack-mounted device with ventilation grills and two fan symbols below.

Effective Cooling with PWM Fans

Proper airflow is crucial for stable server operation. The case comes factory-equipped with two 120 mm PWM fans. PWM control allows you to adjust fan speed based on component temperature.

The design also allows for the installation of four additional 80-mm fans. This enables you to expand the cooling system when using components that generate more heat.

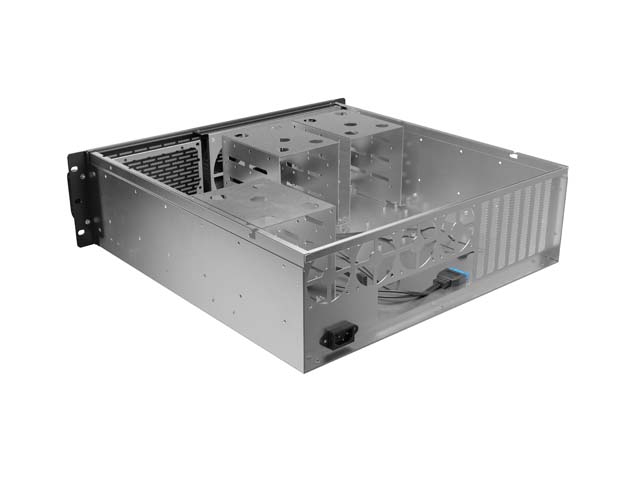

Open rackmount chassis with a metal frame and front panel for electronic components.

Dust filters that protect components

The case is equipped with dust filters that limit the entry of contaminants into the interior. The set includes a replaceable front filter that can be easily removed and cleaned.

This solution helps keep the fans, heat sinks, and other components clean, thereby maintaining adequate cooling performance over the long term.

Metal enclosure with ventilation openings and a protective shield graphic on the side.

Ample space for HDD and SSD drives

The Lanberg SC01-4503-10B is designed for building high-capacity data storage systems. The design provides mounting slots for:

  • 6 2.5-inch SSDs or HDDs,
  • 11 3.5-inch SSDs or HDDs.

Depending on the selected configuration, the enclosure supports up to 17 drives simultaneously. This allows you to set up a file server, a backup system, a surveillance recorder, or an expanded data array. The large number of drive bays also makes it easy to expand storage capacity later without having to replace the entire enclosure.

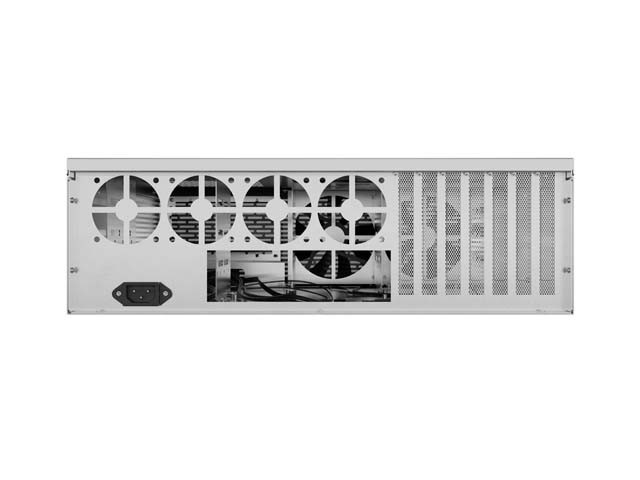

Computer case featuring multiple cooling fans and ventilation grilles at the back.

Support for ATX and SFX Power Supplies

The SC01-4503-10B is compatible with ATX and SFX power supplies. The maximum length of the power supply unit is 140 mm. The ability to choose between two popular formats makes it easier to match the power supply to the server’s power requirements and the available space inside the chassis.

The power supply is not included.

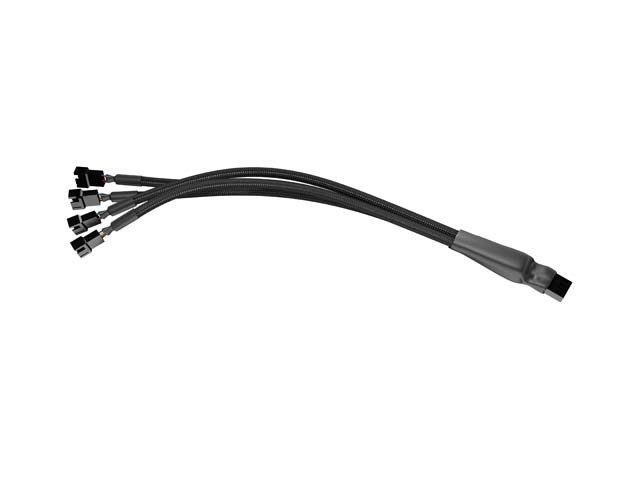

Black cable with multiple connectors branching out at one end and a single connector at the other.

Convenient access to ports and controls

The front panel of the case features USB 3.0 Type-A ports, allowing for quick connection of portable storage devices, keyboards, diagnostic tools, or other accessories. The case also features an LED indicating system operation. Placing the most important connectors and controls on the front ensures convenient access to the server once it is mounted in a rack.

The case comes with the following:

  • a 4-pin PWM fan header,
  • a set of screws.

The included splitter makes it easy to connect fans to the motherboard or PWM controller, while the set of screws allows for convenient installation of components inside the case.

Specification

ICT height 3 U
Size 19"
Motherboard form factor ATX, Micro-ATX, ITX
Number of installed fans 2
Installed fans 2x 120 mm
Fan lifetime 50000 h
Maximum fan speed +/- 10% 1500 RPM
Maximum fan airflow 36.5 CFM
Fan noise level 12.8 dB
Maximum CPU cooling height 105 mm
Maximum length of expansion cards 230 mm
Fan controller PWM
Number of 2.5" drive bays (SSD/HDD) 6
Number of 3.5" drive bays (SSD/HDD) 11
Number of expansion slots 7
Compatible power supply standard ATX, SFX
The maximum length of the PSU 140 mm
Power supply included No
Protections Anti-dust filters
Connectors USB 3.0 Type-A
I/O panel Power & Reset button, USB 3.0 Typ-A x2
Hot-swap No
Work signal LED
Material Steel, Galvanized steel
Colour Black, Silver
Environment humidity 35 - 85 %
Working depth 450 mm
Upper & lower panel thickness 1 mm
Side panel thickness 1 mm
Other elements sheet thickness 1 mm
Length 450 mm
Width 430 mm
Height 133.5 mm
Weight 7.1 kg
Included Accessories Replaceable front dust filter, PWM 4-PIN fan splitter
Black Lanberg SP1 power strip with 1.5m cable and five 230V outlets. Ideal for multiple device connectivity

ICT height
3 U
Size
19"
Motherboard form factor
ATX, ITX, Micro-ATX
Number of installed fans
2
Installed fans
2x 120 mm
Fan lifetime
50000 h
Maximum fan speed +/- 10%
1500 RPM
Maximum fan airflow
36.5 CFM
Fan noise level
12.8 dB
Maximum CPU cooling height
105 mm
Maximum length of expansion cards
230 mm
Fan controller
PWM
Number of 2.5" drive bays (SSD/HDD)
6
Number of 3.5" drive bays (SSD/HDD)
11
Number of expansion slots
7
Compatible power supply standard
ATX, SFX
The maximum length of the PSU
140 mm
Power supply included
No
Protections
Anti-dust filters
Connectors
USB 3.0 Type-A
I/O panel
Power & Reset button, USB 3.0 Typ-A x2
Hot-swap
No
Work signal
LED
Material
Galvanized steel, Steel
Colour
Black, Silver
Environment humidity
35 - 85 %
Working depth
450 mm
Upper & lower panel thickness
1 mm
Side panel thickness
1 mm
Other elements sheet thickness
1 mm
Length
450 mm
Width
430 mm
Height
133.5 mm
Weight
7.1 kg
Included Accessories
PWM 4-PIN fan splitter, Replaceable front dust filter

Download files

SC01-4503-10B - drawings 20260724.pdf
Quick Guide (multilingual)
Product card PL
Product card EN
Declaration of conformity (multilingual)
