Unmanaged Switches

SWITCH DSP1-1008 8X 1GB/S UNMANAGED GIGABIT ETHERNET DESKTOP 5V

Manufacturer code: DSP1-1008
EAN: 5901969415704
Warranty: 24m
Number of Ethernet ports: 8
Ports specification: 8x 1000BASE-T
Maxiumum network link speed: 1 Gbps
Network Link Type: Ethernet
Product description

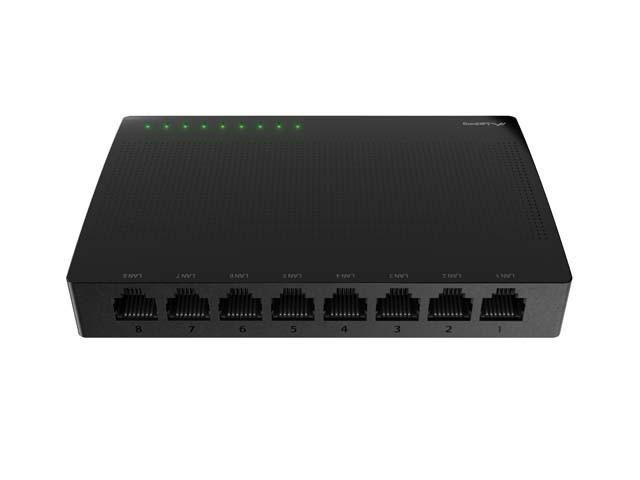

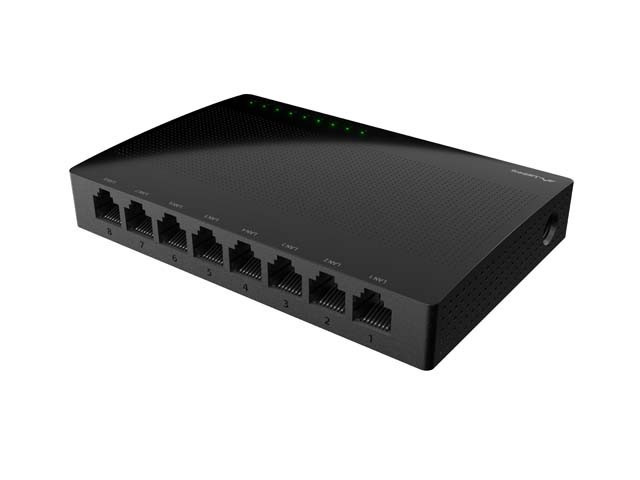

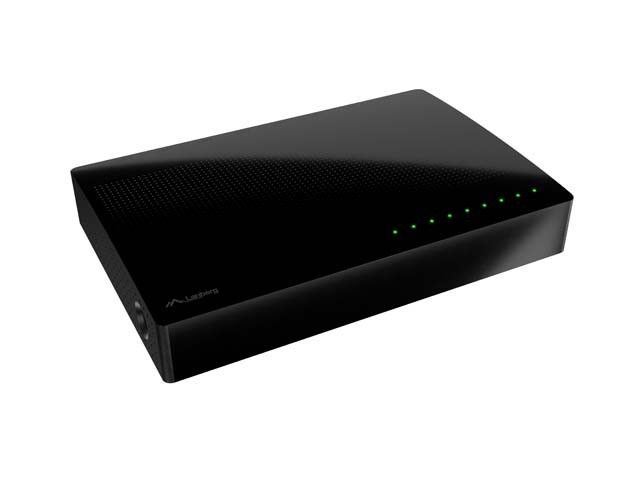

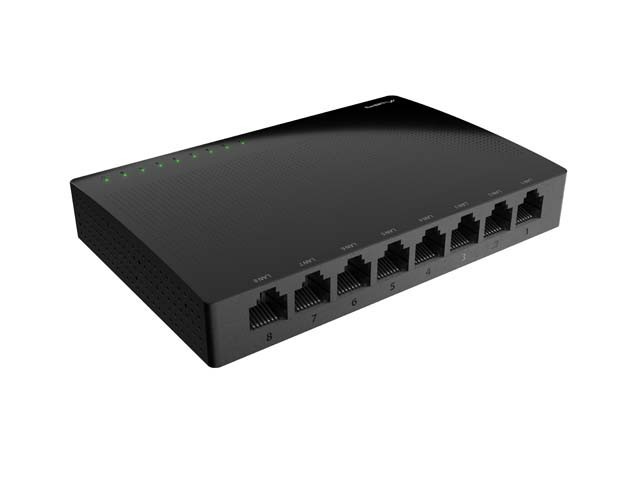

Lanberg DSP1-1008 is a small size unmanaged desktop switch, equipped with 8 Gigabit Ethernet ports. The device is small and handy and works on a plug-and-play basis. The switch provides switching function support for 8 RJ-45 10/100/1000 Mbps ports along with automatic connection negotiation and MDI-MDIX support.

The Lanberg switch is ideal for home use, thanks to its very small size and the use of quiet cooling. The black color scheme and elegant slim housing, make the device fit into almost any interior. The device is suitable for office applications, including SOHO and SMB. The switch also provides adequate performance to meet user requirements in the switch segment.

The function of automatically recognizing and adapting to the type of network cable to be connected (straight or crossed), eliminates the need for only one type of cabling, as well as uplink ports, allowing to reduce unnecessary costs at the same time. The switch supports half-duplex and full-duplex modes for connections between devices. Instead, the flow control function allows you to control the flow of data thus avoiding port congestion in case one of the receiving devices is not able to receive enough of the received data.

Lanberg switch is a guarantee of a combination of high quality, automation and a number of functionalities, ensuring the operation of the device without redundant user intervention.

Features and functionalities:

- 8 RJ-45 10/100/1000 Mbps ports with automatic connection negotiation,
- Plug-and-play - the device does not require any additional configuration,
- MDI/MDIX, MAC-learning, MAC-aging functionality support,
- Data flow control function: back pressure @ half-duplex and IEEE 802.3x @ full duplex,
- Topology: Star,
- Protocol: CSMA/CD,
- MAC address table support: 4K,
- Switching bandwidth: 16.0 Gbps,
- Passive cooling for quiet switch operation,
- Wall mounting holes.

Interface:

- Power supply: external (AC: 100-240 V, 50/60 Hz, 0.3 A; DC: 5 V, 1.0 A).
- Current consumption: max. 2.15 W,
- LEDs indicating power supply operation: Power, LAN ports (Link/ACT),
- Dimensions: 124 x 59 x 23 mm.

Specification

Number of Ethernet ports 8
Ports specification 8x 1000BASE-T
Maxiumum network link speed 1 Gbps
Network Link Type Ethernet
Management Unmanaged
Type of casing Desktop
Chipset Realtek – RTL8370N-VB
PoE support No
Buffer 0.7 Mbit
Bandwith 16 Gbps
MAC address table 4K
Cooling Passive
Power Requirements 5V DC 1A, 100~240V AC 0.3A
Power consumption 2.15 W
Plug & Play Yes
Work signal LED
Wired standards IEEE 802.3ab 1000Base-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)
Functions Automatic MDI / MDI-X, Flow control, MAC auto-learning
Material Plastic
Software No
Length 124 mm
Width 59 mm
Height 23 mm
Weight 0.15 kg
Environment temperature 0 - 40 °C
Environment humidity 10 - 90 %

Number of Ethernet ports
8
Ports specification
8x 1000BASE-T
Maxiumum network link speed
1 Gbps
Network Link Type
Ethernet
Management
Unmanaged
Type of casing
Desktop
Chipset
Realtek – RTL8370N-VB
PoE support
No
Buffer
0.7 Mbit
Bandwith
16 Gbps
MAC address table
4K
Cooling
Passive
Power Requirements
5V DC 1A, 100~240V AC 0.3A
Power consumption
2.15 W
Plug & Play
Yes
Work signal
LED
Wired standards
IEEE 802.3ab 1000Base-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)
Functions
Automatic MDI / MDI-X, Flow control, MAC auto-learning
Material
Plastic
Software
No
Length
124 mm
Width
59 mm
Height
23 mm
Weight
0.15 kg
Environment temperature
0 - 40 °C
Environment humidity
10 - 90 %
