SWITCH ILFE-4P-1GE-1S-90 POE 1XBT 3XAT SFP/ETH DIN UNMANAGMENT FAST ETHERNET

Manufacturer code: ILFE-4P-1GE-1S-90
EAN: 5901969447354
Warranty: 24m
Number of Ethernet ports: 5
Number of fiber ports: 1
Number of POE ports: 4
Ports specification: 1x 100BASE-T 802.3bt PoE++, 3x 100BASE-T 802.3af/802.3at PoE+
Show more
Where to buy?
Do you want to become a partner?
Product description
Logo of Lanberg with the slogan "Take your Peak" on a blue background

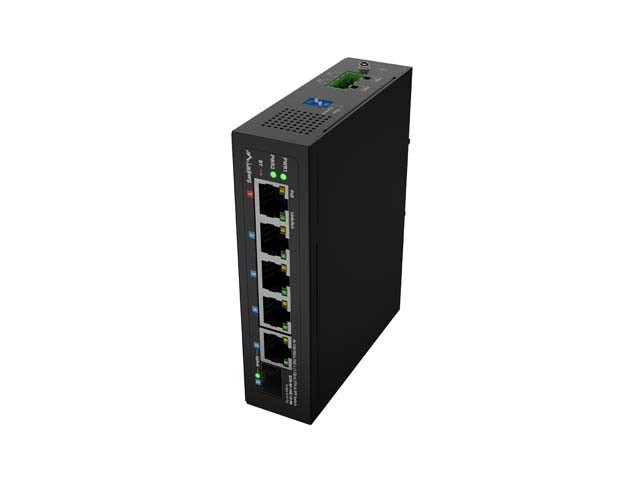

Industrial network switch with multiple ports and a black casing for mounting.

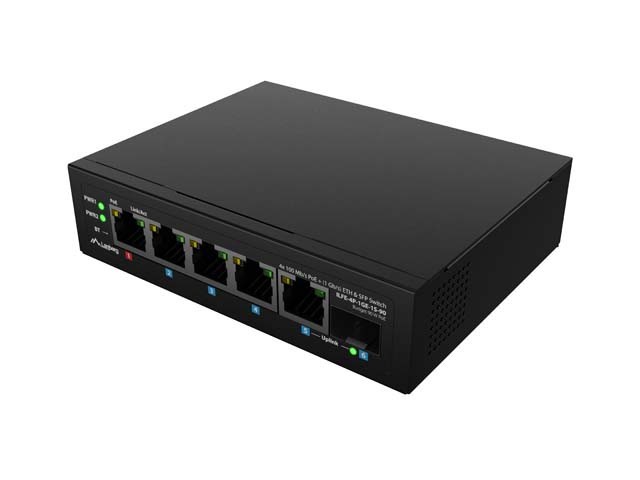

Lightweight unmanaged industrial switch Lanberg ILFE-4P-1GE-1S-90

Industrial switches are an essential active device in any network structure – from automation and SCADA systems, through cable TV networks, to distributed IoT installations and surveillance. Lanberg’s lightweight industrial switch series was designed for demanding working environments: a metal enclosure, passive cooling, and operating parameters that support stable operation across a wide ambient temperature range. The key advantages of this line include high PoE power (PoE+ / PoE++), redundant power input (you can connect 2 power sources), DIN-rail mounting, VLAN and EXTEND functions, automatic MDI/MDI-X, flow control, an intelligent PoE port cut-off function, and MAC auto-learning.

In practice, this is a network switch built for distributed infrastructure: industry, street lighting infrastructure, outdoor CCTV monitoring, alarm systems, and both indoor and outdoor deployments where Ethernet data transmission and PoE power for end devices (cameras, recorders, access points, controllers, sensors) matter – often with higher power requirements.

NOTE: The device power supply is included in the product set.

Industrial switch ILFE-4P-1GE-1S-90 with a rich selection of ports

This switch is equipped with a port set optimized for CCTV/IoT installations:

  • 4× Fast Ethernet RJ45 PoE ports (10/100 Mb/s): 1× IEEE 802.3bt PoE++ (up to 90 W) + 3× IEEE 802.3af/802.3at PoE+.
  • 1× 1000BASE-T uplink (Gigabit Ethernet) – for traffic aggregation and connection to the network core / NVR / router.
  • 1× SFP slot (1000BASE-X) as a fiber uplink – optical parameters depend on the selected SFP module.
Network switch with four ports for power and four additional ports for network connection.

Lanberg Gigabit Ethernet switches with PoE++ technology

PoE, PoE+ and PoE++ technology makes it possible to deliver both data and power to devices using a single Ethernet cable, without additional electrical infrastructure at the camera or access point. The technology based on 802.3af, 802.3at and 802.3bt standards allows powering peripheral devices with up to 120 W (90 W or 120 W depending on the model). A major benefit of the enhanced PoE standard is also high link quality and fast data transmission (up to 1 Gbps, depending on the model). Thanks to these capabilities, PoE is widely used in extensive surveillance networks. PoE+ and PoE++ enable real-time 4K camera streams while maintaining smooth performance.

Icons with different specifications for networking hardware on a light background.

VLAN and EXTEND functions

VLAN helps with logical traffic separation (e.g., CCTV vs the rest of the network), improving order and limiting unwanted broadcast traffic. EXTEND mode was introduced for deployments where you need to ensure operation over a longer run – at the cost of speed. In practice, EXTEND can extend transmission and PoE powering up to 250 m on a single cable run (extend 250 m) in typical surveillance and distributed infrastructure deployments.

Network device with multiple ports surrounded by icons for different network devices.

An unmanaged switch that knows how to disconnect devices

If too many devices are connected and the available PoE power reserve is exceeded, the switch will disconnect endpoints starting from the highest-numbered PoE ports down to the lowest until a safe power limit is restored. This makes it easy to plan for power spikes and define which devices are most critical and should stay online first.

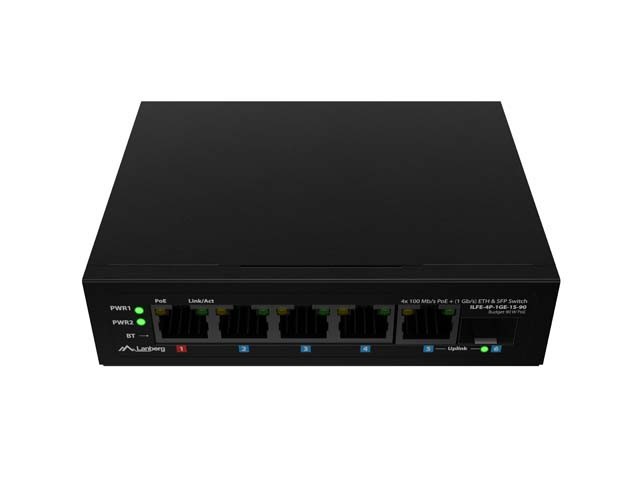

Device with multiple network ports and indicator lights for connection status.

Intelligent switches with SFP module support

Lanberg’s lightweight industrial switches support different fiber types thanks to an integrated SFP slot. Optical transmission parameters depend on the selected SFP module. The switch also supports automatic MDI/MDIX, so crossover cables are not required, and it automatically detects and sets link speed and transmission mode.

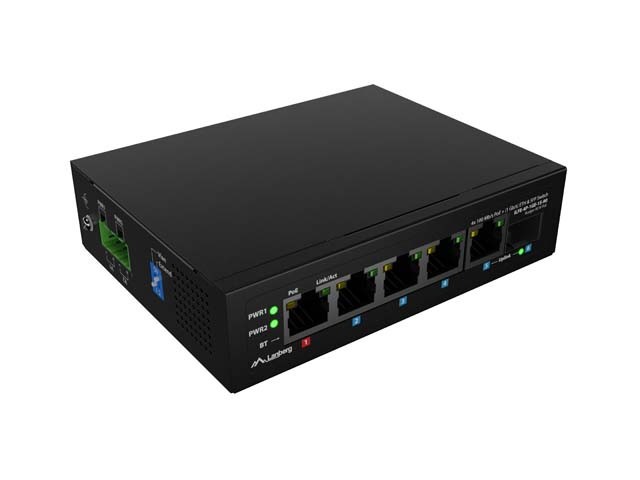

Device with multiple connection ports and a power input on one side.

Unmanaged PoE switch with redundant power input

Redundant power input means a dual power feed to the switch (two independent power paths). If one source fails, the device automatically switches to the other – without user intervention. This solution provides higher security and network stability.

A black box with a flat top and mounting holes alongside a colorful rectangular bracket.

Easy installation in 19" racks and on a DIN rail

Installation is fast and hassle-free thanks to Plug & Play operation. MDI/MDIX auto-detection recognizes the cable type, eliminating the need for crossover wiring and automatically setting link speed and transmission mode. Reliable packet forwarding with CRC checking (store-and-forward) is essential in IP surveillance systems. A major advantage is DIN-rail mounting, which gives flexible installation options both inside RACK cabinets and outside them.

Device with multiple network ports on a blue background and icons for temperature and humidity.

Metal enclosure for durability and wide operating temperature range

A robust metal enclosure improves durability and supports stable continuous operation. The recommended ambient operating range is -25 to 65°C, with 10–90% humidity. While the enclosure is not water- or dust-tight, installed inside an appropriate outdoor/industrial housing it will perform very well in demanding indoor and outdoor environments such as factories, production plants, and industrial halls.

Specification

Number of Ethernet ports 5
Number of fiber ports 1
Number of POE ports 4
Ports specification 1x 100BASE-T 802.3bt PoE++, 3x 100BASE-T 802.3af/802.3at PoE+
Maxiumum network link speed 100 Mbps, 1000 Mbps
Network Link Type Ethernet
Management Unmanaged
Specialized Rack, Industrial
Type of casing Din rail
PoE support Yes
PoE standards 802.3at, 802.3af, 802.3bt
PoE power supply type PoE, PoE+, PoE++
Total budget for PoE 90 W
Bandwith 12 Gbps
MAC address table 2K
Cooling Vents, Passive
Power Requirements 48~56V DC
Surge protection 6 kV
Plug & Play Yes
Work signal LED
Wired standards IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3af PoE, IEEE 802.3at PoE+
Functions Extend mode, Intelligent PoE port disconnection function, Automatic MDI / MDI-X, Flow control, MAC auto-learning, VLAN
Material Metal
Software No
Length 119 mm
Width 94 mm
Height 30 mm
Weight 0.4 kg
Environment temperature -25 - 65 °C
Environment humidity 10 - 90 %
Wireless LANBERG NC-1200-WI network card featuring USB 3.0, AC1200 dual-band support, and two internal antennas

Number of Ethernet ports
5
Number of fiber ports
1
Number of POE ports
4
Ports specification
1x 100BASE-T 802.3bt PoE++, 3x 100BASE-T 802.3af/802.3at PoE+
Maxiumum network link speed
100 Mbps, 1000 Mbps
Network Link Type
Ethernet
Management
Unmanaged
Specialized
Industrial, Rack
Type of casing
Din rail
PoE support
Yes
PoE standards
802.3af, 802.3at, 802.3bt
PoE power supply type
PoE, PoE+, PoE++
Total budget for PoE
90 W
Bandwith
12 Gbps
MAC address table
2K
Cooling
Passive, Vents
Power Requirements
48~56V DC
Surge protection
6 kV
Plug & Play
Yes
Work signal
LED
Wired standards
IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)
Functions
Automatic MDI / MDI-X, Extend mode, Flow control, Intelligent PoE port disconnection function, MAC auto-learning, VLAN
Material
Metal
Software
No
Length
119 mm
Width
94 mm
Height
30 mm
Weight
0.4 kg
Environment temperature
-25 - 65 °C
Environment humidity
10 - 90 %

Download files

Quick Guide (multilingual)
Product card PL
Product card EN
Declaration of conformity (multilingual)
