Unmanaged Switches

SWITCH LIGHT INDUSTRIALPOE 1XBT 3XAT 2XSFP DIN UNMANAGMENT GIGABIT ETHERNET

Manufacturer code: ILGE-4P-2S-90
EAN: 5901969447361
Warranty: 24m
Number of Ethernet ports: 4
Number of fiber ports: 2
Number of POE ports: 4
Ports specification: 1x 100BASE-T 802.3bt PoE++, 2x 1000BASE-X SFP, 3x 100BASE-T 802.3af/802.3at PoE+
Show more
Where to buy?
Do you want to become a partner?
Product description
Logo of Lanberg with the slogan "Take your Peak" on a blue background

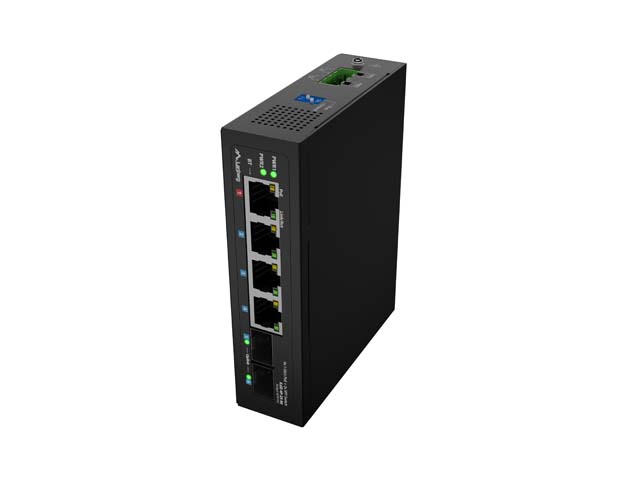

Industrial network switch with multiple ports and a robust black casing for mounting.

Lightweight unmanaged industrial switch Lanberg ILGE-4P-2S-90

Industrial switches are an indispensable active device in any network structure – from automation and SCADA systems, through cable television networks, to distributed IoT installations and monitoring. The Lanberg series of lightweight industrial switches has been designed for demanding working environments: metal housing, passive cooling, and operating parameters allow for stable operation in a wide range of ambient temperatures. The key advantages of this line include high PoE power (PoE+ / PoE++), redundant power supply (possibility of connecting 2 power sources), DIN rail mounting, VLAN and EXTEND functions, automatic MDI/MDI-X, flow control, intelligent PoE port disconnection function, and MAC auto-learning.

In practice, this network switch is designed for distributed infrastructure: industry, street lighting infrastructure, outdoor CCTV monitoring, alarm systems, and indoor and outdoor installations where both Ethernet data transmission and PoE power supply to end devices (cameras, recorders, access points, controllers, sensors) are important – often with higher power consumption.

NOTE: The device power supply is included in the product set.

Industrial switch ILGE-4P-2S-90 with a rich selection of ports

This switch is equipped with ports designed for industrial applications and fiber uplinks:

  • 4× RJ45 Ethernet PoE ports for end devices (PoE switch), supporting IEEE 802.3af / 802.3at (PoE / PoE+) and 802.3bt (PoE++) – including PoE++ BT up to 90 W on a dedicated port to power more demanding devices.
  • 2× SFP slots (1000BASE-X) as uplink – dedicated to traffic exchange between network segments and for building longer-distance connections (optical parameters depend on the selected SFP module).

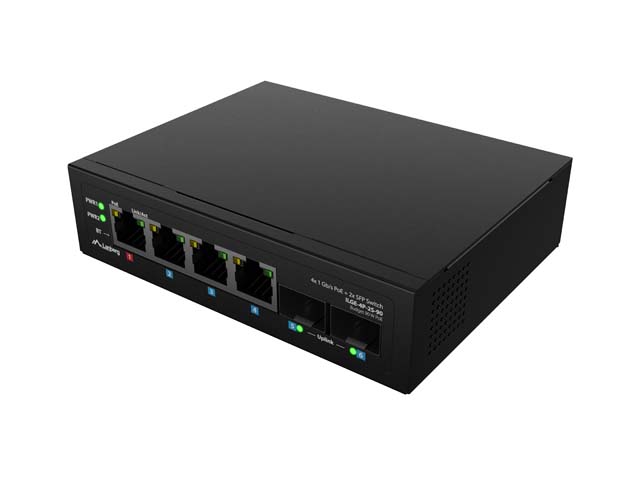

Device with four network ports and two additional connection ports for expansion.

Lanberg Gigabit Ethernet switches with PoE++ technology

PoE, PoE+ and PoE++ technology makes it possible to deliver both data and power to devices using a single Ethernet cable, without additional electrical infrastructure at the camera or access point. IEEE 802.3af provides up to 15.4 W per port, IEEE 802.3at (PoE+) increases this to 30 W, and IEEE 802.3bt (PoE++ / 4PPoE Type 4) can deliver up to 90 W per port – enabling power for 4K cameras with heaters, IR illuminators, or higher-draw automation equipment.

Depending on the model variant, the series offers a total PoE power budget of 90 W or 120 W, which simplifies planning of overall PoE power delivery while keeping safe reserves for stable 24/7 operation.

Six blue squares with different technical terms and specifications arranged in two rows.

VLAN and EXTEND functions

VLAN is used as a practical way to separate traffic/ports (e.g., isolating cameras from each other while maintaining communication with an NVR/router via the uplink). It helps reduce broadcast “spill-over” and improves security in distributed installations.

EXTEND mode was introduced for deployments where you need to ensure operation over a longer run – at the cost of speed. In Extend mode you can reach up to 250 m on a single cable run, typically by limiting the port speed to around 10 Mb/s – ideal for surveillance where distance is more important than maximum throughput.

Network device surrounded by symbols representing various communication devices.

An unmanaged switch that knows how to disconnect devices

If a temporary power spike occurs (e.g., when IR illuminators/heaters start up) and the available PoE power budget is exceeded, the switch will disconnect ports in a controlled way: it cuts off the highest-numbered PoE port first, then the next ones until the system returns to a safe power limit. This lets you plan priorities in advance – the most critical devices stay online first.

Intelligent switches with SFP module support

Lanberg’s lightweight industrial switches support different fiber types thanks to SFP slots. Optical transmission parameters (range, fiber type, wavelength) depend on the selected module, giving you flexibility when choosing an uplink to a cabinet, pole, or another node. The device also supports automatic MDI/MDI-X, so crossover cables are not required, and the Ethernet port automatically negotiates speed and transmission mode.

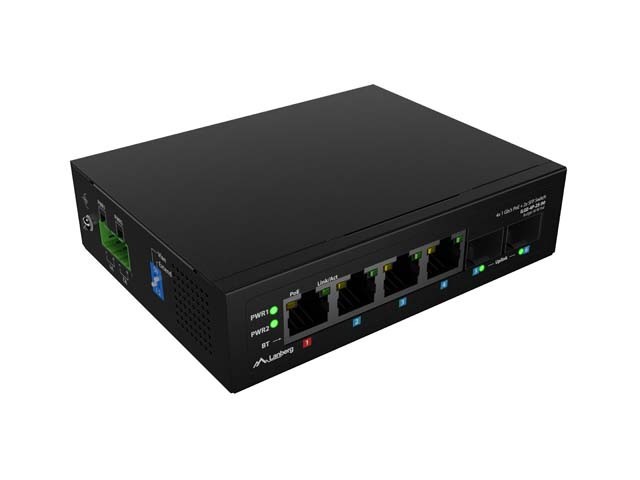

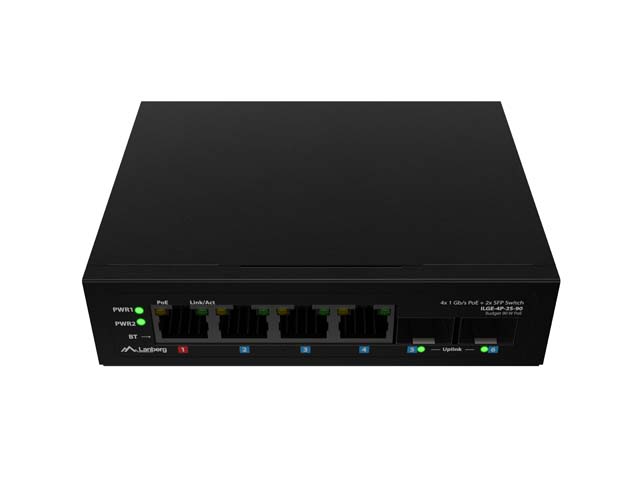

Device with multiple connection ports and indicator lights on the front panel.

Unmanaged PoE switch with redundant power input

Redundant power input means a dual power feed to the switch (two independent power paths). If one source fails, the device automatically switches to the other – without user intervention and without interrupting operation of critical PoE ports. It’s a simple but highly effective way to increase network stability in industrial and outdoor environments.

Device with various ports and a separate close-up view of its back connections.

Easy installation in 19" racks and on a DIN rail

This is a Plug & Play unmanaged switch – connect power and cables, and the device configures the link parameters automatically. MDI/MDI-X auto-detection recognizes the cable type, eliminating the need for crossover wiring. In IP surveillance systems, reliable packet forwarding is crucial – store-and-forward switching with CRC checking helps reduce propagation of corrupted frames.

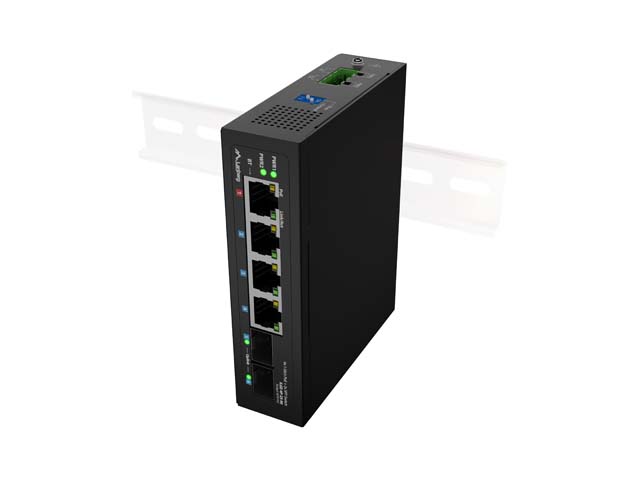

A major advantage is DIN-rail mounting, making it easy to install the device in automation cabinets, and when needed – also in rack environments (e.g., on a shelf or using integration accessories such as rack mounting ears). This provides flexibility for installation both inside and outside RACK cabinets.

A black rectangular device box next to a round graphic of a metal bracket with colored connectors.

Metal enclosure for durability
and wide operating temperature range

A sturdy metal enclosure increases mechanical resistance, and passive cooling supports reliability in continuous operation. The recommended ambient operating temperature is -25 to 65°C, with 10–90% humidity. While the enclosure itself is not water- or dust-tight, installed inside an appropriate outdoor/industrial housing it will perform very well in demanding environments: industrial halls, production plants, surveillance nodes, and outdoor cabinets. Additional protection includes 6 kV surge protection, particularly valuable in outdoor deployments.

Device with four network ports and indicators on a blue background with icons.

Specification

Number of Ethernet ports 4
Number of fiber ports 2
Number of POE ports 4
Ports specification 1x 100BASE-T 802.3bt PoE++, 2x 1000BASE-X SFP, 3x 100BASE-T 802.3af/802.3at PoE+
Maxiumum network link speed 1 Gbps
Network Link Type Ethernet, Fiber
Management Unmanaged
Specialized Industrial, Rack
Type of casing Din rail
PoE support Yes
PoE standards 802.3at, 802.3af, 802.3bt
PoE power supply type PoE, PoE+, PoE++
Total budget for PoE 90 W
Bandwith 12 Gbps
MAC address table 2K
Cooling Passive, Vents
Power Requirements 48~56V DC
Surge protection 6 kV
Plug & Play Yes
Work signal LED
Wired standards IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3z 1000Base-LX/SX
Functions Extend mode, Intelligent PoE port disconnection function, Automatic MDI / MDI-X, Flow control, MAC auto-learning, VLAN
Material Metal
Software No
Length 119 mm
Width 94 mm
Height 30 mm
Weight 0.53 kg
Environment temperature -25 - 65 °C
Environment humidity 10 - 90 %
Wireless LANBERG NC-1200-WI network card featuring USB 3.0, AC1200 dual-band support, and two internal antennas

Number of Ethernet ports
4
Number of fiber ports
2
Number of POE ports
4
Ports specification
1x 100BASE-T 802.3bt PoE++, 2x 1000BASE-X SFP, 3x 100BASE-T 802.3af/802.3at PoE+
Maxiumum network link speed
1 Gbps
Network Link Type
Ethernet, Fiber
Management
Unmanaged
Specialized
Industrial, Rack
Type of casing
Din rail
PoE support
Yes
PoE standards
802.3af, 802.3at, 802.3bt
PoE power supply type
PoE, PoE+, PoE++
Total budget for PoE
90 W
Bandwith
12 Gbps
MAC address table
2K
Cooling
Passive, Vents
Power Requirements
48~56V DC
Surge protection
6 kV
Plug & Play
Yes
Work signal
LED
Wired standards
IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3z 1000Base-LX/SX
Functions
Automatic MDI / MDI-X, Extend mode, Flow control, Intelligent PoE port disconnection function, MAC auto-learning, VLAN
Material
Metal
Software
No
Length
119 mm
Width
94 mm
Height
30 mm
Weight
0.53 kg
Environment temperature
-25 - 65 °C
Environment humidity
10 - 90 %

Download files

Quick Guide (multilingual)
Product card PL
Product card EN
Declaration of conformity (multilingual)
