SWITCH POE EXTENDER DIN-GE4-BT-90W 1XIN 3XOUT GIGABIT ETHERNET DIN RAIL BT 90W METAL CLIPS

Name: SWITCH POE EXTENDER DIN-GE4-BT-90W 1XIN 3XOUT GIGABIT ETHERNET DIN RAIL BT 90W METAL CLIPS LANBERG
Brand: Lanberg
SKU: DIN-GE4-BT-90W

Manufacturer code: DIN-GE4-BT-90W

EAN: 5901969447293

Warranty: 24m

Number of Ethernet ports: 4

Number of POE ports: 4

Ports specification: 4x 1000BASE-T

Maxiumum network link speed: 1 Gbps

Where to buy?

Do you want to become a partner?

PoE Extender Switch DIN-GE4-BT-90W Lanberg

A PoE extender (often referred to as a PoE repeater) is a practical device for installations where we need to run PoE-powered devices further than the standard length of a single cable section allows. Such a switch/PoE switch acts as an active splitter: it regenerates the signal and transmits PoE power further, allowing you to expand monitoring, Wi-Fi, or automation in your LAN without adding power supplies along the way — everything still goes through a single UTP cable.
The Lanberg series offers two DIN PoE extenders: both have 4 RJ45 ports in a 1× input port (PoE IN) + 3 output ports (PoE OUT) configuration, and differ in PoE class and bandwidth. This description applies to the DIN-GE4-BT-90W version — a model with Gigabit Ethernet ports (4× 1000BASE-T) and PoE++ (802.3bt) support with a total PoE budget of 85 W.
For comparison: the DIN-FE4-AT-30W variant is PoE+ (802.3at/802.3af) and Fast Ethernet 100 Mbps, with a PoE budget of 28 W.
Key features of the DIN-GE4-BT-90W:

4 Ethernet ports / 4 PoE ports (including PoE IN + PoE OUT) and 4× 1000BASE-T, i.e. full gigabit for more demanding IP installations.
PWR and Link/Act LED indicators — quick field service and immediate port operation verification.
Extends Ethernet signal and PoE power by another 100 meters.
DIN rail (TS-35) mounting with metal clip — ideal for switchboards and telecommunications cabinets.

Extend the range of PoE power and network signal in your LAN by 100 m

In practice, the PoE extender solves a typical installation problem: surveillance cameras, access control, alarm components, or Wi-Fi access points are “too far” from the main PoE switch. The DIN-GE4-BT-90W allows you to extend the LAN and PoE power supply by another 100 m, maintaining communication and power supply on a single twisted pair cable.
In addition, with 1 Gb/s per port, the device is a great choice where not only power but also bandwidth is important — e.g., in installations with multiple video streams from IP cameras or when expanding network segments with higher traffic.

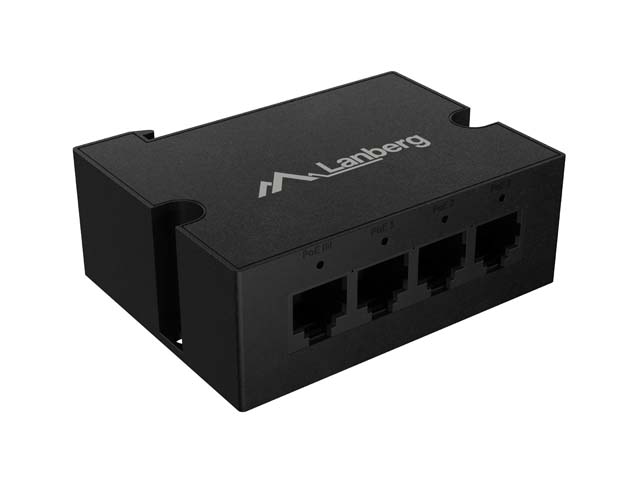

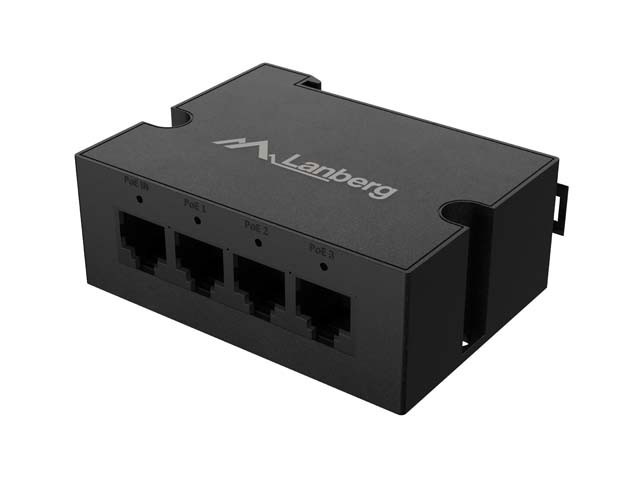

Networking device with four ports and a black casing for power and data transmission.

4-port PoE extender switch with cascading capability

DIN-GE4-BT-90W can be used as a single extender, but in practice, you gain the most from linear expansion. In a cascade (serial) configuration, you can add more extenders, extending the effective range by another 100 m each time — up to +300 m with 3 cascade levels (relative to the nominal range of the PoE switch).
Importantly, at each stage, in addition to another extender, you can also connect additional PoE devices (e.g., 2 IP cameras and other peripherals), creating a convenient additional network branch along the way.

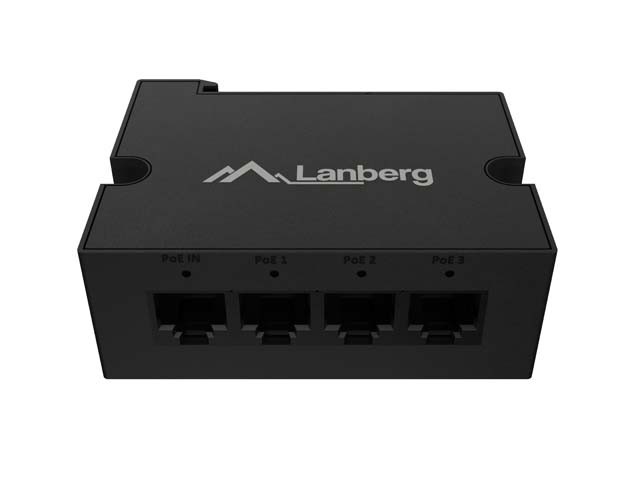

Device with multiple connection ports in a compact black housing.

Advanced PoE extender ready for any task

It is a compact, 4-port switch designed for stable operation in the field. It supports key Layer 2 standards and features:
• Automatic MDI/MDI-X — easier connections in the installation, without worrying about the type of cable.
• Flow control (IEEE 802.3x) — better traffic control and fewer problems with temporary overloads.
• MAC auto-learning + 2K MAC table — fast and stable switching in LAN segments.

In terms of power supply: DIN-GE4-BT-90W supports 802.3af / 802.3at / 802.3bt, i.e. standard, negotiated PoE (not passive PoE), with PoE++ type and a power budget of 85 W (max. 25 W per port according to specifications).
The device also features passive cooling and low power consumption (0.5 W), which is conducive to 24/7 operation in cabinets and switchboards.

Diagram showing a network setup with switches and video cameras on a blue background.

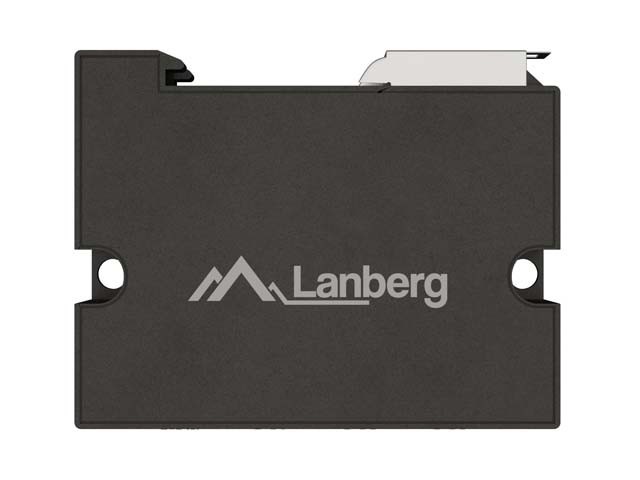

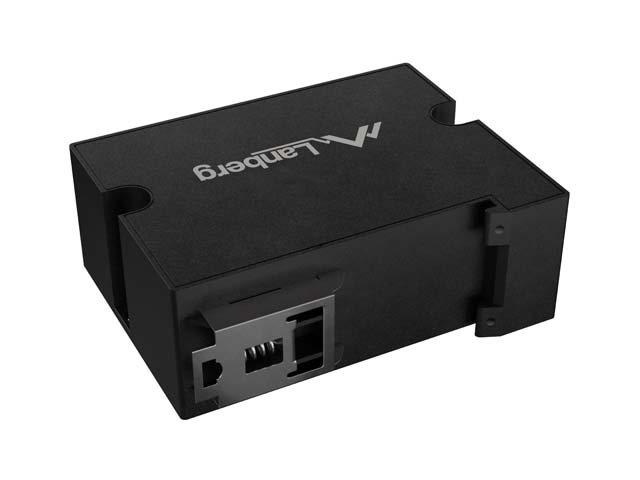

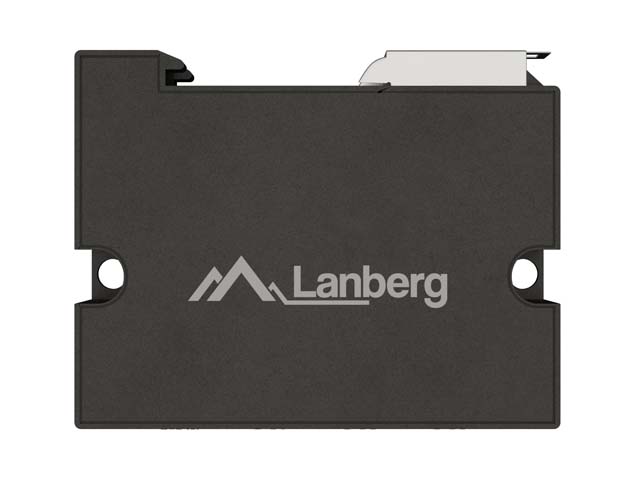

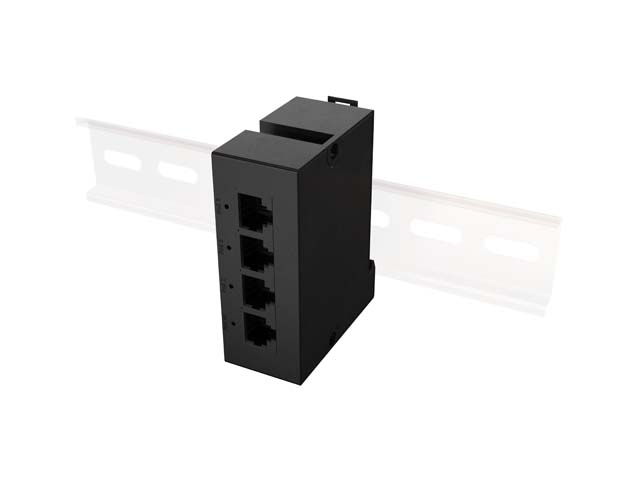

Robust, durable housing and convenient mounting
on a TS-35 DIN rail with a metal clip

In technical installations, speed of installation and order are important. Mounting on a DIN rail (TS-35) with a metal clip means that the extender sits securely in the switchboard, and you save time during expansion and servicing.
The main advantages of this mounting method include:
• Quick and easy installation (snap-on)
• Space saving
• Easy modification and maintenance
• Versatility and standardization
• Neat cabling
• Durability and safety
• Cost reduction
If you are expanding your network monitoring, Wi-Fi, or IP infrastructure and want to increase the range and capabilities of PoE without adding power sources along the way, the DIN-GE4-BT-90W is a solid choice. And if you need less power or Fast Ethernet is sufficient, there is also a PoE+ variant (DIN-FE4-AT-30W) in the series.

Specification

Number of Ethernet ports	4
Number of POE ports	4
Ports specification	4x 1000BASE-T
Maxiumum network link speed	1 Gbps
Network Link Type	Ethernet
Management	Unmanaged
Type of casing	Din rail
Chipset	Airoha AN8855HN
PoE support	Yes
PoE standards	802.3at, 802.3af, 802.3bt
PoE power supply type	PoE++
Total budget for PoE	85 W
Maximum power per port	25 W
Buffer	0.8 Mbit
MAC address table	2K
Cooling	Passive
Power consumption	1.6 W
Plug & Play	Yes
Work signal	LED
Wired standards	IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)
Functions	Automatic MDI / MDI-X, Flow control, MAC auto-learning
Material	Plastic
Software	No
Length	79 mm
Width	58 mm
Height	24 mm
Weight	0.59 kg
Environment temperature	-10 - 40 °C
Environment humidity	10 - 90 %
