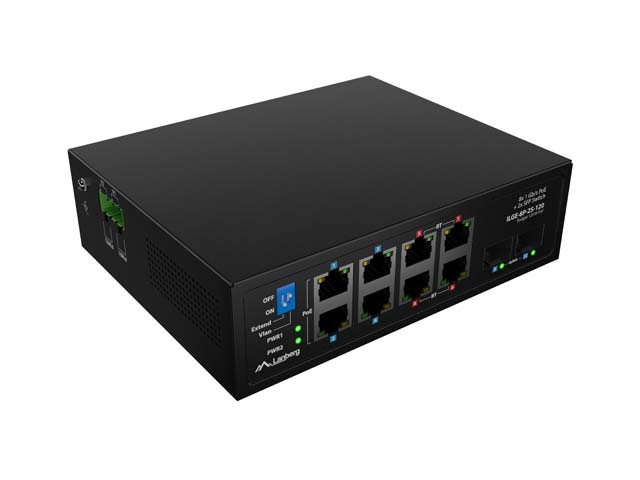

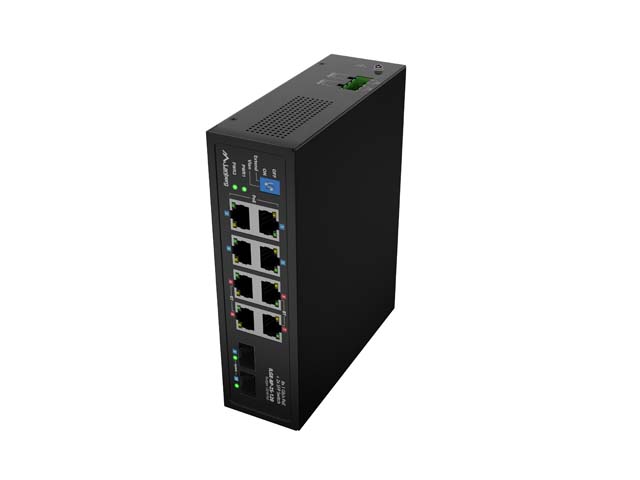

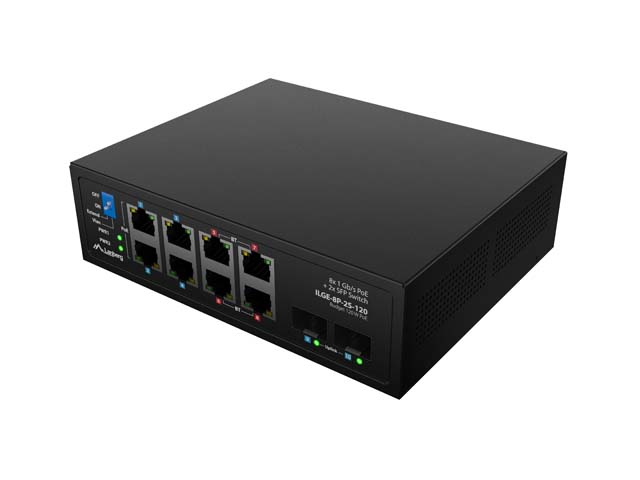

SWITCH ILGE-8P-2S-120 POE 4XBT 4XAT 2XSFP DIN UNMANAGMENT GIGABIT ETHERNET

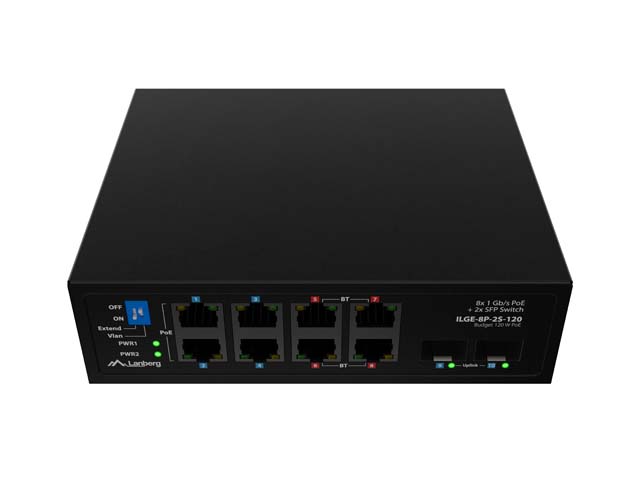

This switch is equipped with ports for deployments where both power and Gigabit performance matter:

• 8× Gigabit Ethernet RJ45 PoE ports (1 Gb/s) for end devices, including 4× PoE++ BT ports (max 90 W) plus remaining PoE ports in 802.3af/802.3at standards.
• 2× SFP uplinks (1 Gb/s) – for building redundant or parallel fiber connections (e.g., to two cabinets, a ring topology, or two independent cable routes).

VLAN is used as a practical way to separate traffic/ports (e.g., isolating cameras from each other while maintaining communication with an NVR/router via the uplink). It helps reduce broadcast “spill-over” and improves security in distributed installations.

EXTEND mode was introduced for deployments where you need to ensure operation over a longer run – at the cost of speed. In Extend mode you can reach up to 250 m on a single cable run, typically by limiting the port speed to around 10 Mb/s – ideal for surveillance where distance is more important than maximum throughput.

If a temporary power spike occurs (e.g., when IR illuminators/heaters start up) and the available PoE power budget is exceeded, the switch will disconnect ports in a controlled way: it cuts off the highest-numbered PoE port first, then the next ones until the system returns to a safe power limit. This lets you plan priorities in advance – the most critical devices stay online first.

Intelligent switches with SFP module support

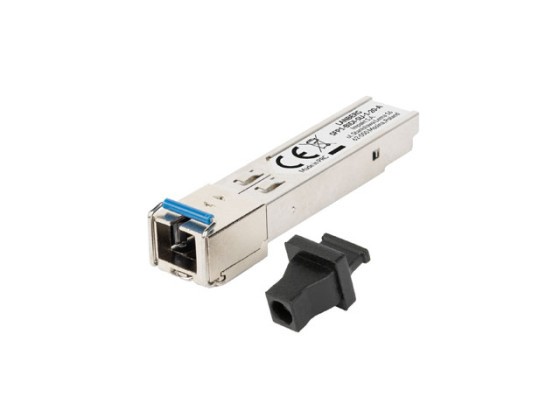

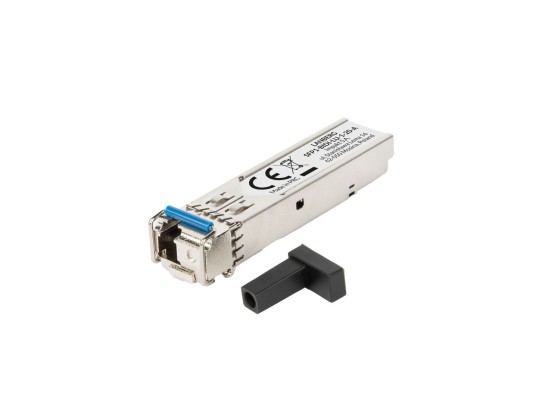

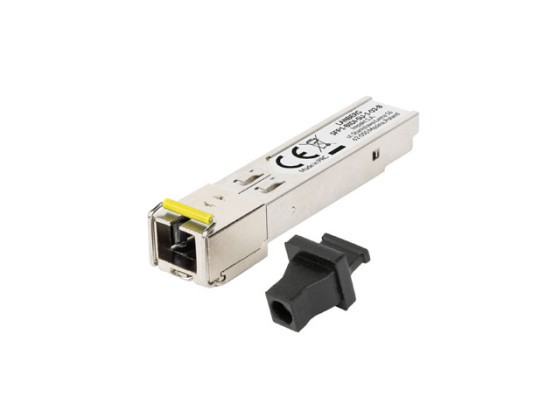

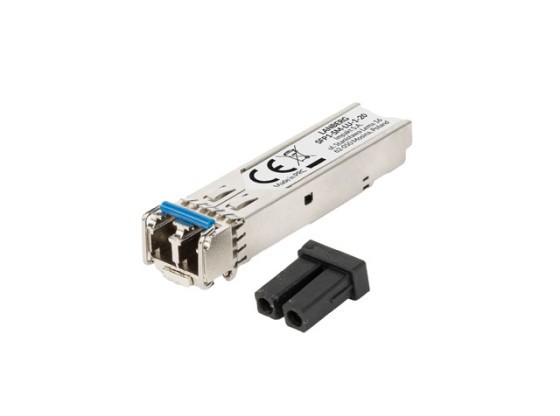

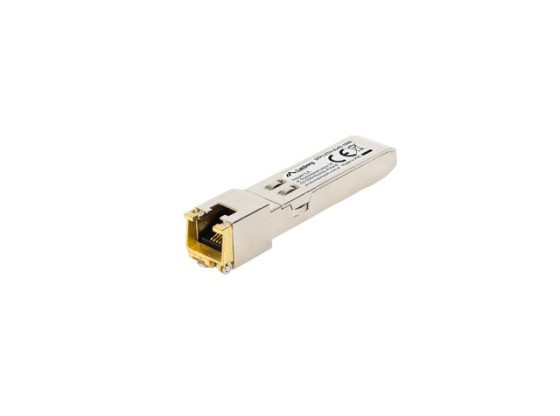

Lanberg’s lightweight industrial switches support different fiber types thanks to SFP slots. Optical transmission parameters (range, fiber type, wavelength) depend on the selected module, giving you flexibility when choosing an uplink to a cabinet, pole, or another node. The device also supports automatic MDI/MDI-X, so crossover cables are not required, and the Ethernet port automatically negotiates speed and transmission mode.

The sturdy metal housing enhances mechanical durability, while passive cooling ensures reliability in continuous operation. The recommended operating ambient temperature ranges from -25 to 65 °C, with humidity between 10% and 90%. Although the enclosure itself is not water- or dust-tight, when installed in a suitable box or cabinet, the switch will perform well in demanding environments: industrial halls, manufacturing facilities, monitoring centers, and street cabinets. An additional safeguard is 6 kV surge protection, which is essential for outdoor installations.
