RACK CABINET 10" WALL/POLE-MOUNT IP55 HERMETIC 300X200X300 GREY (ASSEMBLED)

Manufacturer code: WAH1-3230-00S
EAN: 5901969447989
Warranty: 1m
Type of cabinet: Wall mount
Size: 10"
ICT depth: 3 U
Assembly type: Assembled
Show more
Where to buy?
Do you want to become a partner?
Product description
Gray S/FTP Cat 7 LAN cable, 305 meters, with copper wire, LSZH, CPR certified, featuring Fluke Passed verification by Lanberg
Hermetic rack cabinet suitable for wall or pole mounting with a clean, white design.

Easy installation

The cabinet is designed for quick and convenient installation in technical, industrial, and outdoor applications. Its well-thought-out design allows you to efficiently prepare the cabinet for operation without the need for complicated tools or additional installation steps.

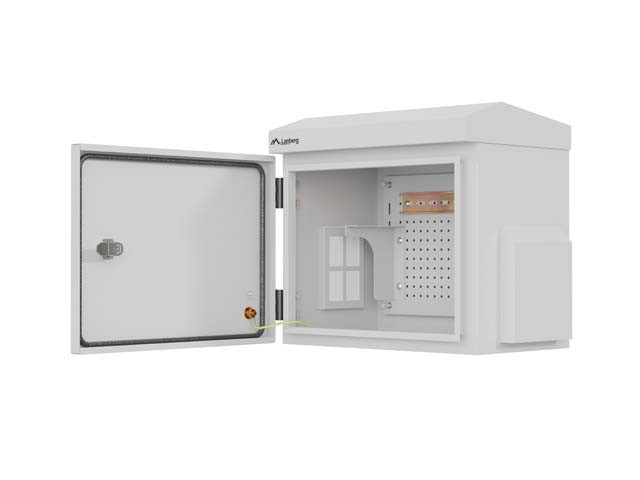

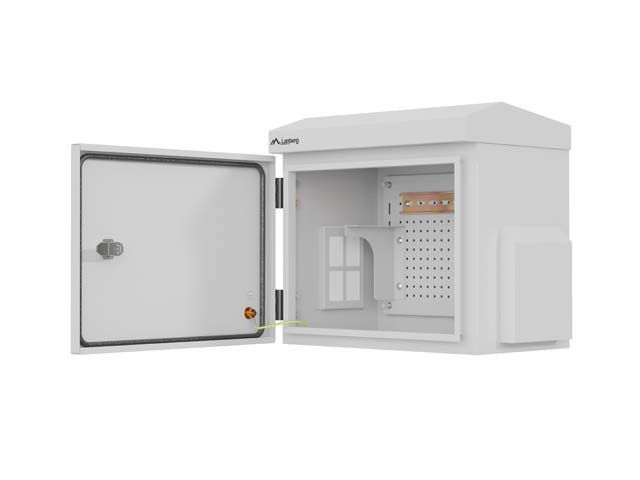

The kit includes a complete mounting package, containing all the components needed to install the cabinet on a wall or pole. The cabinet is equipped with mounting bolts and rack brackets. The MESH panel allows for convenient mounting of additional components inside the cabinet.

Protection in Demanding Environments

The rack cabinet is designed for use in environments exposed to external factors such as moisture, dust, rain, and changing weather conditions. Its AISI 304 stainless steel construction ensures very high corrosion resistance, making the cabinet ideal for outdoor, industrial, and technical installations.

The IP55 protection rating effectively shields the installed equipment from dust, rain, and water jets. Additionally, the IK10 mechanical impact resistance enhances the cabinet’s durability against impacts and acts of vandalism, which is particularly important in urban installations, industrial facilities, monitoring systems, and network operators’ infrastructure.

Icons representing features like protection, mounting options, and sealed construction.

Designed for network infrastructure and security

This cabinet is ideal for mounting equipment used in modern telecommunications and technical installations. It can be used, among other things, to protect components of CCTV systems, network devices, industrial automation equipment, and IoT solutions. Two locks on the front doors enhance security when accessing the installed components.

An F7-class air filter, compliant with the EN779 standard, limits the ingress of dust and contaminants into the cabinet while promoting proper air circulation. The bottom cover features pre-punched holes for cable routing, and cable glands are included in the kit, facilitating safe, sealed, and organized cabling.

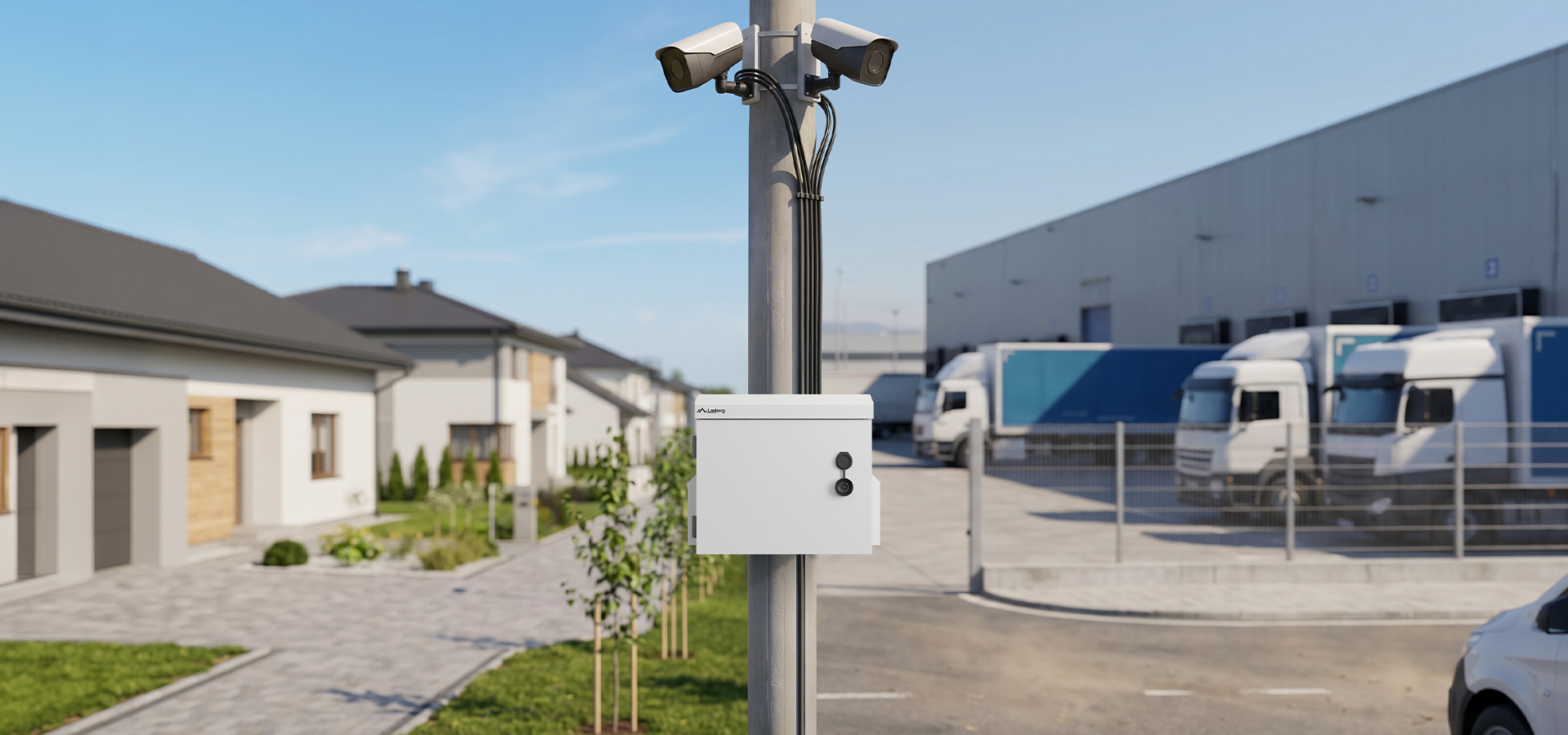

Surveillance cameras mounted on a pole near a white control box and trucks in a yard.

Solid construction

Reliability and durability are key features of Lanberg rack cabinets. The structure is made of high-quality materials, with an emphasis on durability, stability, and precision in the finish. The use of AISI 304 stainless steel enhances the enclosure’s resistance to corrosion and environmental factors, ensuring a long service life even under demanding operating conditions.

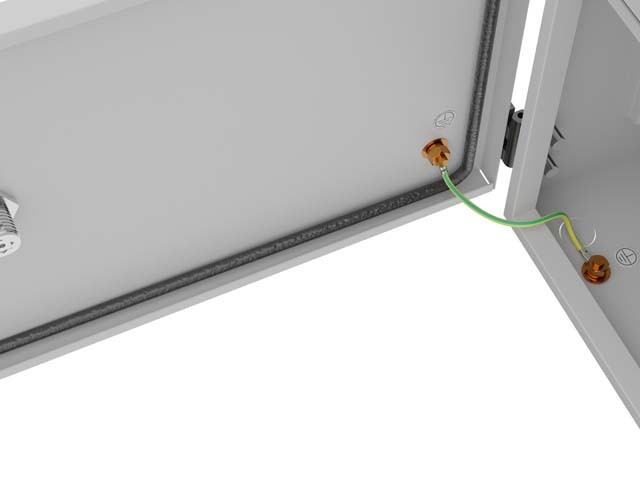

Every Lanberg rack cabinet features a robust construction resulting from a meticulous manufacturing process that combines functionality, durability, and aesthetics. Attention to detail ensures that the product meets the expectations of professional installers and users seeking a secure solution to protect their network infrastructure. Full grounding of the cabinet supports the safe operation of the installed equipment.

Enclosure with a secure lock, designed to be waterproof and dust resistant.

Summary

This cabinet is a robust and functional solution for protecting network, ICT, and industrial infrastructure in demanding operating conditions. Thanks to its AISI 304 stainless steel construction, high IP55 protection rating, and IK10 mechanical impact resistance, it effectively protects installed equipment from external factors, mechanical damage, and unauthorized access.

Its well-thought-out design, complete mounting kit, the option for wall or pole mounting, an F7 air filter, and pre-installed cable glands make the cabinet convenient to install and use on a daily basis. It is a reliable choice for CCTV, network, industrial, and IoT installations, as well as for telecom operator infrastructure, where durability, security, and professional craftsmanship are essential.

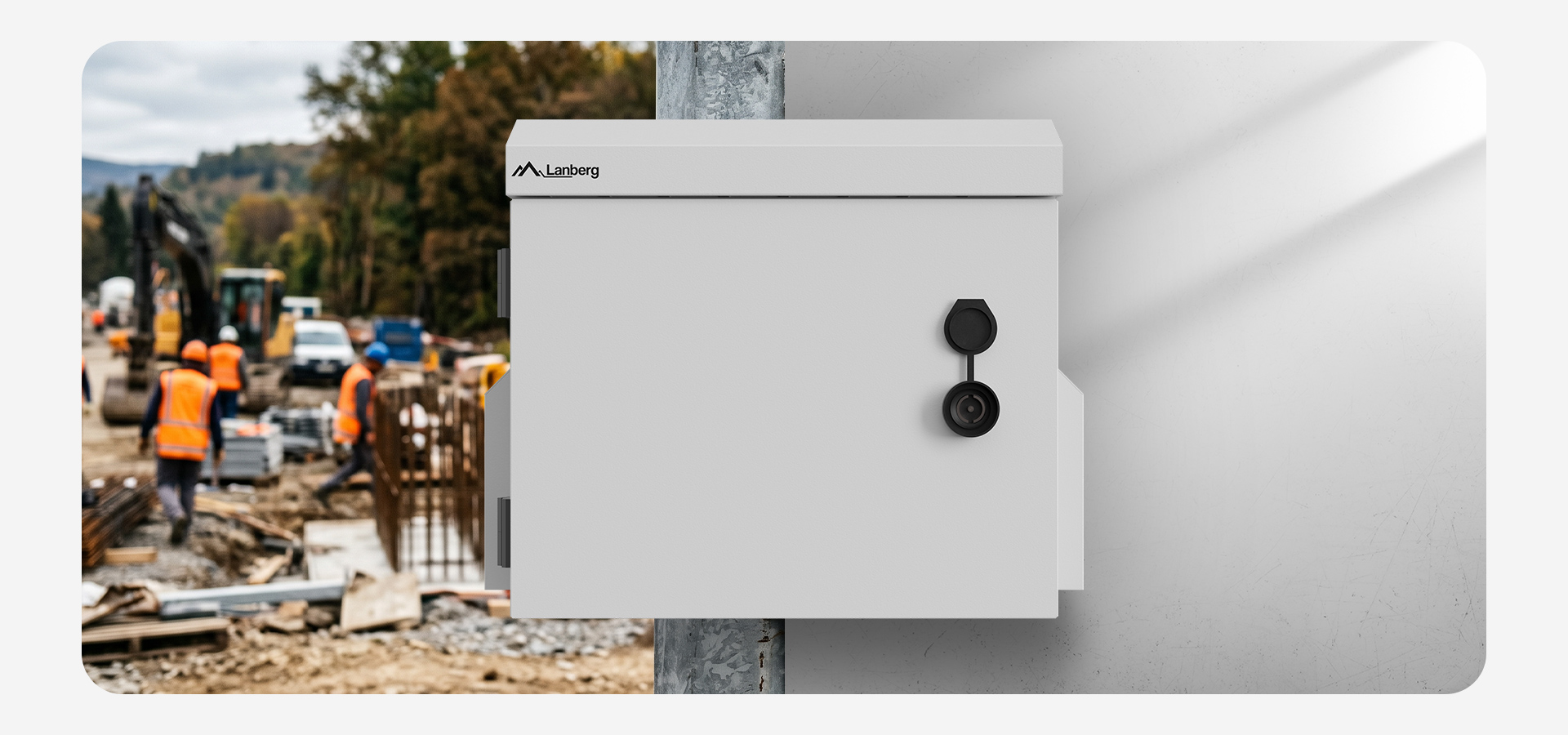

Secure white metal box attached to a wall with a lock, construction site in the background.

Specification

Type of cabinet Wall mount
Size 10"
ICT depth 3 U
Assembly type Assembled
Working depth 200 mm
Mounting depth range 10 - 200 mm
Working height 250 mm
Front door type Metal
Door type Single-leaf
Material Galvanized steel, Stainless steel (AISI 304)
Maximum front door opening angle 180 °
Maximum static load 50 kg
Slot amount for fans 1
Number of horizontal rails 2
Colour Gray
RAL color RAL7035
Weatherproof rating IP55
Impact resistance rating (IK) IK10
Front door thickness 1 mm
Upper & lower panel thickness 1.2 mm
Side panel thickness 1.2 mm
Mounting rails thickness 1 mm
Frame thickness 1.2 mm
Other elements sheet thickness 1 mm
Depth 220 mm
Width 320 mm
Height 300 mm
Weight 11.3 kg
Standard ANSI/EIA RS-310-D, IEC297-2:1982, DIN 41491/PART 1, DIN 41494/PART 7, ETSI
Grounding Details Front door, Bottom panel
Included Accessories M6 screws, Grounding cable, U-profile RACK brackets, Perforated (mesh) sheet, PG9 cable glands, PG13.5 cable glands, Accessories for wall and pole mounting
Lanberg 19" 4U wall-mounted rack, black, size 600x450, designed for organized installation of equipment

Type of cabinet
Wall mount
Size
10"
ICT depth
3 U
Assembly type
Assembled
Working depth
200 mm
Mounting depth range
10 - 200 mm
Working height
250 mm
Front door type
Metal
Door type
Single-leaf
Material
Galvanized steel, Stainless steel (AISI 304)
Maximum front door opening angle
180 °
Maximum static load
50 kg
Slot amount for fans
1
Number of horizontal rails
2
Colour
Gray
RAL color
RAL7035
Weatherproof rating
IP55
Impact resistance rating (IK)
IK10
Front door thickness
1 mm
Upper & lower panel thickness
1.2 mm
Side panel thickness
1.2 mm
Mounting rails thickness
1 mm
Frame thickness
1.2 mm
Other elements sheet thickness
1 mm
Depth
220 mm
Width
320 mm
Height
300 mm
Weight
11.3 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details
Bottom panel, Front door
Included Accessories
Accessories for wall and pole mounting, Grounding cable, M6 screws, PG13.5 cable glands, PG9 cable glands, Perforated (mesh) sheet, U-profile RACK brackets
